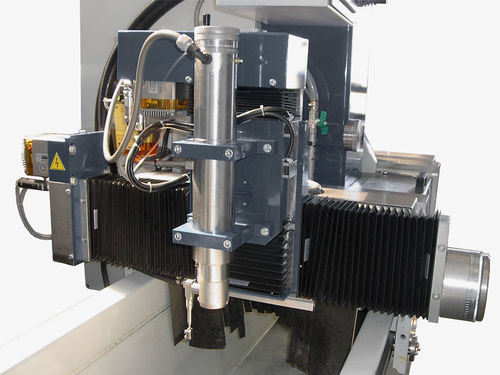

Stationary thickness gauge RTS15

mechanical

Product overview
The RTS15 level detector is a measurement device designed to determine the actual thickness of finished blades while compensating for grinding wheel wear. Available in a manual version with a vernier scale or an automatic version with PLC control.

Versions

• Manual version with vernier scale
• Automatic version with PLC

Function and use
The RTS15 measures the finished blade thickness used in sharpening and finishing operations. It factors wheel wear into thickness calculations to ensure consistent final dimensions across parts.

Applications
Ideal for quality control in blade manufacturing and sharpening lines where finished straight blades must have identical thickness. Suitable for integration into manual inspection stations or automated production lines.

Technical specifications

• Model: RTS15
• Measurement accuracy: 0.01 mm (1/100 mm) vernier scale
• Function: determines finished blade thickness accounting for wheel wear
• Versions: manual (vernier) and automatic (PLC)
• Protection: high watertightness
• Construction: sturdy, vibration‑proof frame suitable for industrial environments
