process alarm controller
Remote Alarm™

Add to MyDirectIndustry favorites
Compare this product
process alarm controller process alarm controller - Remote Alarm™
{{requestButtons}}

Characteristics

  • Type:

    process

Description

OVERVIEW:

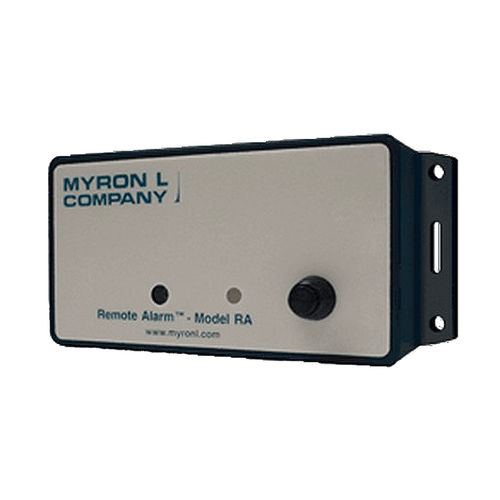

The Myron L® Company’s accessory for our monitor/controller line is the Remote Alarm™. This remotely mounted AUDIBLE and VISUAL alarm connects to any MyronL Company controller, or brand “X” controller with dry contacts (requires 24 VDC). When activated by the controller the Remote Alarm will provide both an audible and a visual alert at a location other than at the controller.

A mute button will silence the piezo alarm for up to 10 minutes while the LED remains illuminated. After the preset time the piezo alarm will again sound, this will repeat until the water quality is corrected.

Thus allowing servicing of the system under control, while still acting as a reminder if the problem has not been corrected.

APPLICATIONS:
•Medical
•Process Control
•Reverse Osmosis
•Waste Treatment
•Conductivity/TDS
•Resistivity
•pH/ORP
•And many more ...

FEATURES:
•A loud audible alarm, 75db at 2 ft./610 mm
•USER adjustable time delay of 0.1 to 10 minutes
•Simple push button switch temporarily silences alarm
•Bright RED LED remains clearly visible while alarm is silenced
•Operates on safe 24 VDC
•Case is made of rugged ABS plastic
•Compact size only
4.75 L x 2.56 W x 1.56 H in. /
121 L x 65 W x 40 H mm
•Wire lengths of 500 ft./152 meters have been tested with no adverse effects
•Screw or adhesive mounting option
