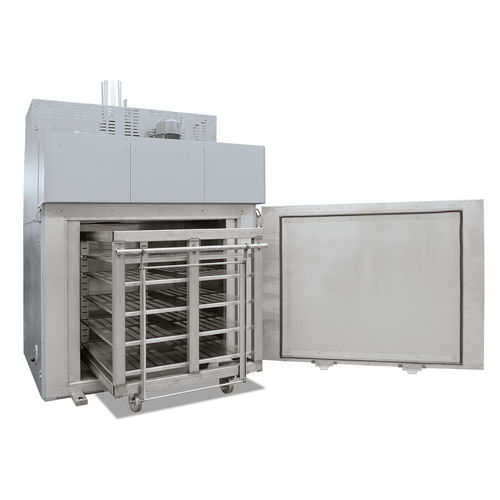

Drying oven KTR series

heat treatmentchambergas

Heating cabinets are ideal for processes in the low temperature range up to max. 150 °C, such as for drying, preheating molds and tools or tempering and curing plastics. They have a compact design and are especially suitable for large charges. They are heated with a separate heating unit that is generally located behind the heating cabinet. • Electrically heated (via a heating register with integrated chrome steel heating elements) or gas-fired (direct or indirect gas-fired including injection of the hot air into the intake duct) • Temperature uniformity up to +/− 3 °C according to DIN 17052-1 (for design without track cutouts) • High-quality mineral wool insulation provides for outer temperatures of < 25 °C above room temperature • Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used. • High air exchange for fast drying processes • Double-wing door for furnaces KTR 2300 and larger • Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load • Defined application within the constraints of the operating instructions • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive • Controller B500 (5 programs with 4 segments each)
