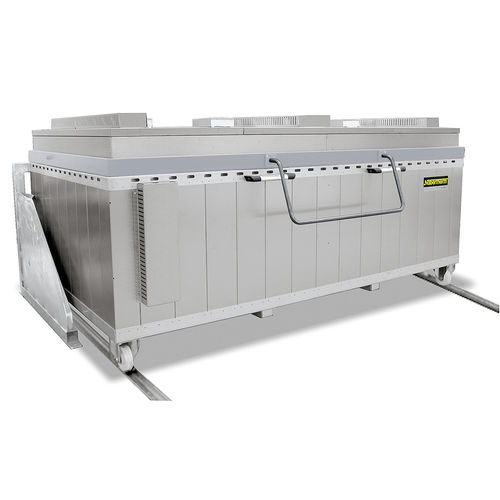

Chamber furnace GW series

gasautomaticfor glass working

For slumping and bending of complex glass parts, e.g. glass furniture, shower cabins, etc., tub furnaces are the right choice. Full coverage heating: from the lid, all 4 sides and the tub bottom. Due to the modular system additional tubs in customized dimensions can be provided. Full coverage heating: from lid, all 4 sides and bottom 3-zone temperature control from top to bottom for optimal temperature uniformity Heating elements mounted on ceramic support tubes for free heat radiation and long service life Bottom heating covered by SiC tiles Hood insulated with non-classified fiber materials Tub bottom insulated with multi-layer of insulation, lightweight refractory bricks on the hot face Hinged hood as standard version Gas operated dampers provide for easy hood opening Manually operated exhaust air flaps Tub on wheels can be pulled out manually Rails on floor for perfect tub guidance included Defined application within the constraints of the operating instructions Interchangeable table system on rails, electrically driven on request Electro-hydraulically driven hood instead of hinged cover Tub insert to elevate bottom height, in order to use the furnace for glass fusing applications (in this product version the tub heating can be switched off Automatic lid opening for faster cooling, programmable via the controller extra function Motor-driven exhaust air flaps in the hood for preselected cooling
