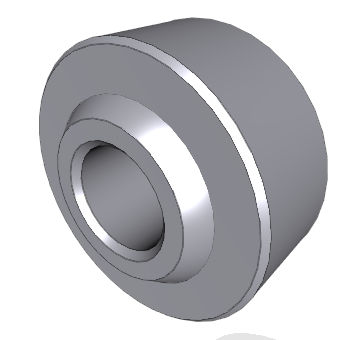

Spherical plain bearing GLK series
steelstainless steelmaintenance-free

spherical plain bearing
spherical plain bearing
spherical plain bearing
spherical plain bearing
spherical plain bearing
spherical plain bearing
spherical plain bearing
Add to favorites
Compare this product


Characteristics

Type
spherical
Material
steel, stainless steel
Other characteristics
maintenance-free
Applications
for heavy loads
Inside diameter

Max.: 30 mm (1.18 in)

Min.: 6 mm (0.24 in)

Description

DURBAL GLK - NIRO HEAVY-DUTY SPHERICAL-PLAIN BEARING IN STAINLESS STEEL, SLIDING COMBINATION STEEL / DURBAL-GLIDE (PTFE), SERIES K, ACCORDING TO DIN ISO 12240-1 Manufacturer - NADELLA Standard - DIN ISO 12240-1 Description - DURBAL GLK - Niro heavy-duty spherical-plain bearing in stainless steel, sliding combination steel / DURBAL-Glide (PTFE), series K, according to DIN ISO 12240-1, d = 6 mm Part number - GLK 06-60-500 Mass - 0.01 kg Note - outer ring: stainless steel with injected DURBAL-Glide (Polyamid-PTFE-fibreglass-Compound) Note1 - joint ball: stainless steel, hardened, ground, polished Note2 - maintenance: maintenance-free DURBAL GLK / GLKX HEAVY-DUTY SPHERICAL-PLAIN BEARING, SLIDING COMBINATION STEEL / DURBAL-GLIDE (PTFE), SERIES K, ACCORDING TO DIN ISO 12240-1 Manufacturer - NADELLA Standard - DIN ISO 12240-1 Description - DURBAL GLK heavy-duty spherical-plain bearing, sliding combination steel / DURBAL-Glide (PTFE), series K, according to DIN ISO 12240-1, d = 6 mm, standard version Part number - GLK 06-20-500 Mass - 0.01 kg Note - outer ring: steel with injected DURBAL-Glide (Polyamid-PTFE-fibreglass-Compound) Note1 - joint ball: ball bearing steel, hardened, ground, polished and hard chromium plated Note2 - maintenance: maintenance-free

Catalogs

No catalogs are available for this product.

See all of Nadella Group‘s catalogs

Other Nadella Group products

DURBAL ROD ENDS AND SPHERICAL PLAIN BEARINGS
