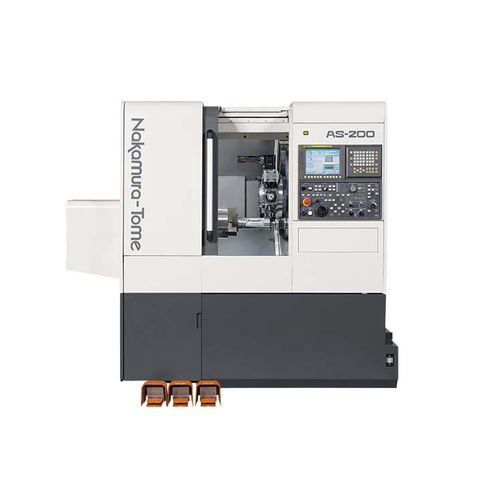

CNC milling-turning center / horizontal / 3-axis / high-speed
AS-200

{{requestButtons}}

Characteristics

  • Control type:

    CNC

  • Type:

    horizontal

  • Number of axes:

    3-axis

  • Other characteristics:

    high-speed

  • Diameter:

    Max.: 290 µm

    Min.: 0 µm

  • X travel:

    203 mm

  • Y travel:

    41 mm

  • Z travel:

    320 mm

Description



Space saving combined machine tool with Y-axis & Milling function(standard)
With Y-axis! Stroke: 82mm
With Milling function: 5.5/3.7kw, spindle speed: 6000min-1
Stong spidle motor: 15/11kw
High speed index! X-axis: 24m/min, Z-axis:36m/min, C-axis: 600min-1.
Turret: Max dodecagonal drum turret(Max.24station) or 15station
Number of milling tool (dodecagonal drum turret): 12
Number of milling tool (pentadecagonal drum turret): 15
