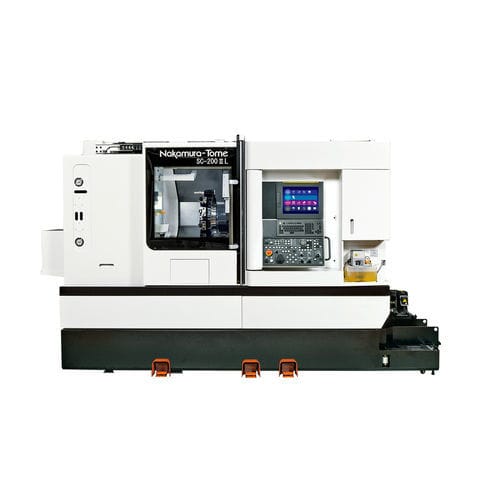

CNC turning center SC-200IIL

high-speedhigh-rigidityY-axis

8” Class Single-Turret Carrying Out Great Machining Rigidity and Stability It ensures the machining area that is more than an 8” class machine with a maximum turning diameter of 390mm and a tool swinging diameter of 620mm, equipped with a 15/11kW (op. 18.5/15kW) spindle motor. Spindle speed is 4,500min-1, and Y-axis slide travel is 100mm (±50mm). With a high rigid slant bed with box-way slides, it carries out great machining rigidity and stability. The distance between centers has been increased to 715mm (distance between spindles: 800mm). More Convenient, More Effective NC tailstock (MT-4/rotating center) specifications are now standard, making it easier to machine long workpieces. The gantry loader “GR-203 High-Speed” is selectable. (op.) Many stress-free machine structures have been applied that cut the burden on workers.
