Compact shuttle storage system UNION-1500

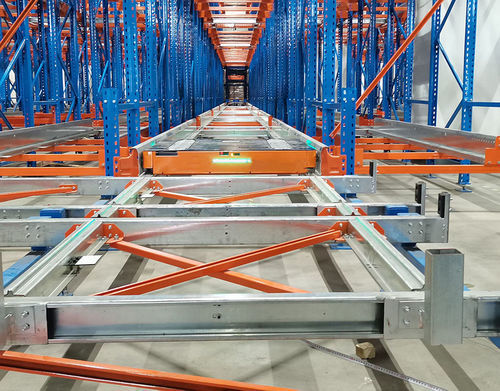

Our pallet shuttle system is an advanced high-density storage solution, designed to optimize warehouse space and improve handling efficiency. The shuttle pallet racking system uses semi-automated shuttles to store and retrieve pallets, reducing labor costs and increasing throughput. As experienced pallet shuttle manufacturers, we provide customized racking systems suitable for cold storage, food, beverages, and other industries requiring intensive pallet storage. Product Description - Automatic Storage Radio Shuttle Pallet Runner Rack For Warehouse Solution is a racking system with high density storage including racking and electrically powered pallet runners, which works with forklifts. This highly efficient storage solution provides a new option to maximize warehouse volume utilization. Radio shuttle car specification: - Lift Distance: 22mm - Total Weight of Loading: Max. 2000kg - Running without Load: 1.1m/s, with max load: 0.5m/s - Single Lift time: 1.1s / 1.3s / 1.5s - Total Weight of Equipment: 222-240kg - Battery Packs Capacity: BYD 2 set x 24V 30AH - Running Noise: < 70DB - Remote Control Type: Radio-transmitter Main Components Table: - Driver motor for running: Lenze GKR03-2P HAR 063C21 370W (Germany) - Driver motor for lift: Lenze GFL04-2F HCR 063C21 370W (Germany) - Battery packs capacity: AMD 24V 60AH (China) - Programmable Logic Controller: Siemens PLC (Germany) - SickSensor: Sensor (Germany) The rack is a new kind of storage management system, with high density storage racking and electrically powered pallet runners working with forklifts. It introduces a new concept for loading pallets and storage space, utilizing warehouse space more adequately and flexibly compared to traditional storage styles. Our Service - CAD drawing and 3D drawing as your requirements - Kindly provide information for quick and exact quotation: - Drawing (If available) - Size (Width, Depth, Height) - Entry type - Loading capacity - Quantity - (RAL) color you want Technical Specifications / Features - Model: UNION-1500 - Brand: UNION - High-density storage solution - Semi-automated shuttle operation - Suitable for cold storage, food, beverage, and other industries - Max loading per shuttle: 2000kg - Remote radio control - Battery: BYD 2x24V 30AH - Motors: Lenze (Germany) - PLC: Siemens (Germany) - Noise: <70dB
