Compact shuttle storage system

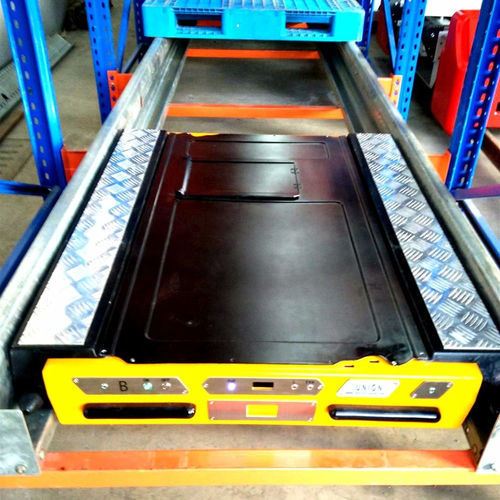

Product Description Automatic Storage Radio Shuttle Pallet Runner Rack For Warehouse Solution is a racking system with high density storage including racking and electrically powered pallet runners, which works with forklifts. This high efficient storage solution provides a new option to maximize use of warehouse volume. Radio shuttle car specification: - Lift Distance: 22mm - Total Weight of Loading: Max. 2000kg - Running without Load: 1.1m/s, with max load: 0.5m/s - Single Lift time: 1.1s / 1.3s / 1.5s - Total Weight of Equipment: 222-240kg - Battery Packs Capacity: BYD 2 set x 24V 30AH - Running Noise: < 70DB - Remote Control Type: Radio-transmitter The rack is a new kind of storage management system, with high density storage racking and electrically powered pallet runners working with forklifts. It introduces a new concept for loading pallets and storage space, utilizing warehouse space more adequately and flexibly compared to other traditional storage styles. Our Service - CAD drawing and 3D drawing as your requirements. - Kindly provide information for quick and exact quotation: - Drawing (If available) - Size (Width, Depth, Height) - Entry type - Loading capacity - Quantity - (RAL) color you want Key Features / Technical Specifications: - High density storage racking system - Electrically powered pallet runners - Works with forklifts - Max loading: 2000kg - Lift distance: 22mm - Running speed: 1.1m/s (no load), 0.5m/s (max load) - Battery: BYD 2x24V 30AH - Remote control: Radio-transmitter - Motors: Lenze (Germany) - PLC: Siemens (Germany) - Sensors: SickSensor (Germany)
