Shuttle shelving ISO9001/ISO14001/UN-SPR09066

automated

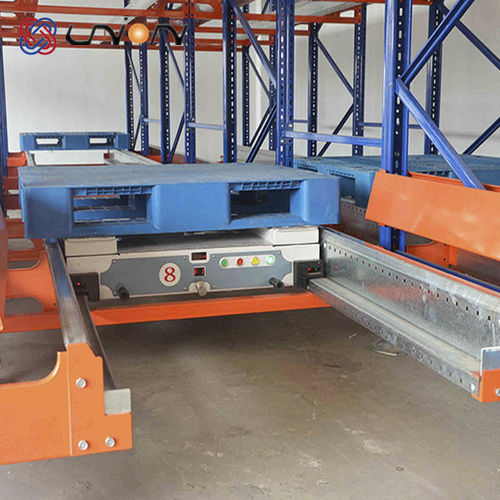

Automated Radio Shuttle Racking System Bulk storage (predominantly palletised food and drink) has conventionally been stored within Drive-In, Push Back or beam racking systems. These systems though efficient are limited by the length of the storage lane that can be practically achieved. The shuttle movements are sent via the radio remote controller allowing the forklift truck and driver to be released for other tasks while the shuttle operates. The shuttle is easily moved between lanes by a standard fork lift truck. Specification Pallet Size: W1200*D1000mm Pallet Material: Steel, Plastic, Wood Pallet Outline: Grid-shaped, Tin-shaped Deflection of Pallet: Max 20mm Total Weight of Loading: Max 500kg/1000kg/1500kg/2000kg Modle of Running: Inside the two rails Running without Loading: 1.1m/s Running with Max Loading: 0.9m/s, 0.7m/s, 0.5m/s, 0.5m/s Lift Distance: 22mm Single Lift time: 1.1s / 1.3s / 1.5s / 1.5s Total Weight of Equipment: 222kg/228kg/240kg/240kg Battery Packs Capacity: BYD 2 set x 24V 30AH Battery Voltage: DC 24V Remote Control Type: Radio-transmitter Running Noise: < 70DB
