Networked communication unit GSM900a

networked communication unit
networked communication unit
Add to favorites
Compare this product


Characteristics

Options
networked

Description

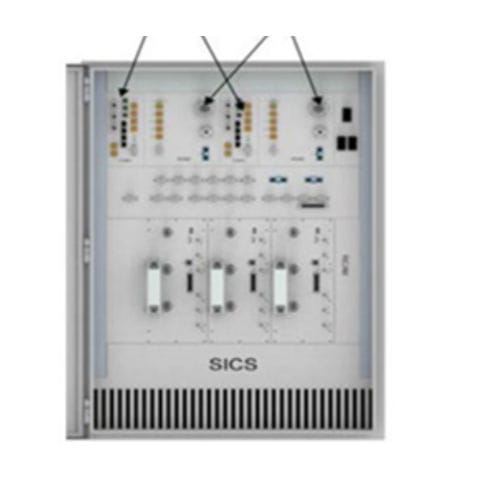

GSM9000a/RRU9000 distributed base station system is a base station subsystem jointly developed by Ticom and Kapsch, which is suitable for Chinese railway application environment. It passed the CRCC certification and Kapsch certification . It is specially designed for railway chain environment, and conforms to GSM-R standards and technical specifications. TDMU optical extension unit of GSM9000a can take 12 sets of RRU9000; The core processor, the main control board and the main RF module are redundant. The networking mode is flexible and has many kinds of networking methods, such as star type, ring, single network interweave redundancy and so on The configuration of the same community and different community adopts to a variety of application scenarios. Specification -Volume: 1100 x 600 x 600mm (height * width * depth) -Weight: full 148kg/ standard 80kg -Power consumption: 780W@-48VDC -Interface: BBU-BSC:8*E1/T1 -BBU-RRU:8*2.5G port -Configuration: support 9 carrier wave at maximum / single machine supports same community and different community networking -Power: 60W/ carrier wave -environment condition -Working temperature: -5℃~+40℃; -Storage temperature: -25 C ~ +65 C; -Relative humidity: 15%~85%.
