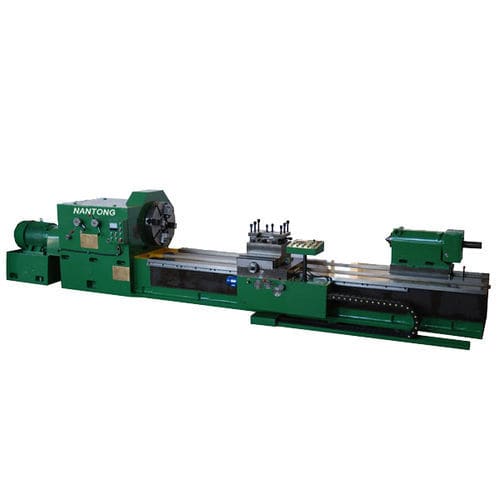

Conventional lathe YJ-CA8463

horizontalrigid

1, the main purpose of the machine and the basic composition 1.1 The main purpose Machine tools for the roll-specific machine tools, mainly for processing steel roller body hole type, the use of forming tools, the roll body Ф300 ~ Ф630mm for a variety of roll-pass processing and hole-type repair. The outer cylindrical surface of the roll can also be rough machined and some other shaft parts machined. 1.2 The basic composition of machine tools: Machine bed from the bed, bedside boxes, tailstock, knife planes, skateboards, the center frame and other major components. 2, the main specifications of the machine parameters Center high 320mm The largest workpiece weight 3500kg Maximum cutting force 40kn Disk maximum torque 10kn.m Spindle speed series infinite Spindle speed change hydraulic automatic Disk diameter ￠ 650mm Feed series 12 Longitudinal (z-axis) feed rate range 0.18-8 Horizontal (X-axis) feed rate range 0.045-2 Tailstock sleeve movement of 150mm
