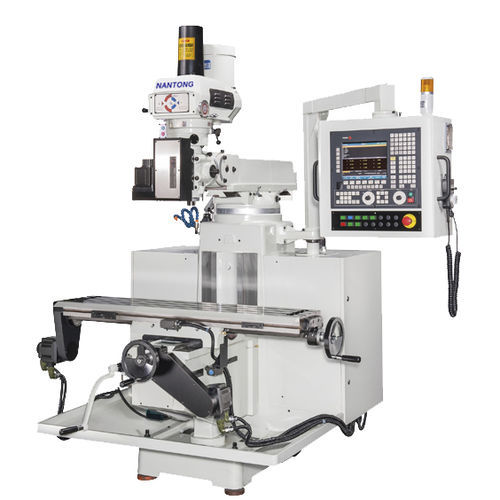

3-axis CNC milling machine YJ-CNC400vertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- X travel
830 mm
(33 in)- Y travel
380 mm
(15 in)- Z travel
355 mm
(14 in)- Rotational speed
Max.: 4,500 rpm
(28,274 rad.min-1)Min.: 50 rpm
(314 rad.min-1)- Power
3 ch
(3 hp)- Work feed X-axis
Max.: 3,000 mm/min
(2 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 3,000 mm/min
(2 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 3,000 mm/min
(2 in/s)Min.: 0 mm/min
(0 in/s)- Weight
1,400 kg
(3,086.47 lb)- Overall length
1,850 mm
(72.8 in)- Overall width
1,900 mm
(74.8 in)- Overall height
2,120 mm
(83.5 in)
Description
Table size 1370 × 250 mm
T slot (NumberxWidth) 3 × 15.875mm
Table spindle nose 150 ~ 505mm
Turned 360 ° on the turntable
Head rotation (R & L) 45 °
Head tilt (up and down) 45 °
Spindle to column 159 ~ 719mm
Spindle taper NST # 30 (NST # 40 option)
Quail feed 0.04 ~ 0.08 ~ 0.14mm
50HZ 50 ~ 3800rpm
Longitudinal / cross feed rate 0 ~ 3000mm / min
Quickly move 5000 mm / min on the XY
