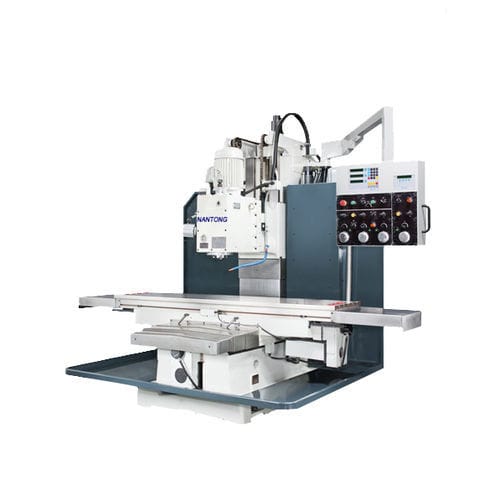

3-axis milling machine YJ-1600
vertical

3-axis milling machine
3-axis milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
X travel

1,600 mm
(63 in)

Y travel

700 mm
(28 in)

Z travel

700 mm
(28 in)

Power

10 ch
(10 hp)

Description

Table Size (LxW) 2200 x 500mm (86.61x19.69 ") T slot (number x size) 18x5x85mm (0.71x0.20x3.35) Table load capacity of 1000 kg Spindle nose to the table 70 ~ 770mm (2.76 "~ 30.31") spindle Spindle taper NST # 50 gear head Spindle speed 50Hz low: 104 ~ 466 high: 308 ~ 1400 60Hz Low: 125 ~ 560 High: 370 ~ 1100 Spindle speed step 6 steps Spindle center to cylinder 700 mm (27.56) Feed rate XYZ axis feed rate 0-750mm / min (0 "~ 29.53") Quickly move the XYZ axis 12M engine X, Y, Z Motor DC 1200W Coolant pump 1/6 HP Air compressor 6kg / cm 2 Need 12 kilowatts of electricity Machine Length (A) 2930 mm (115.35) Machine width (B) 3200 mm (125.98) Machine height (C) 2530 mm (99.61) Machine net weight (kgs) 4500kgs (9921lbs)
