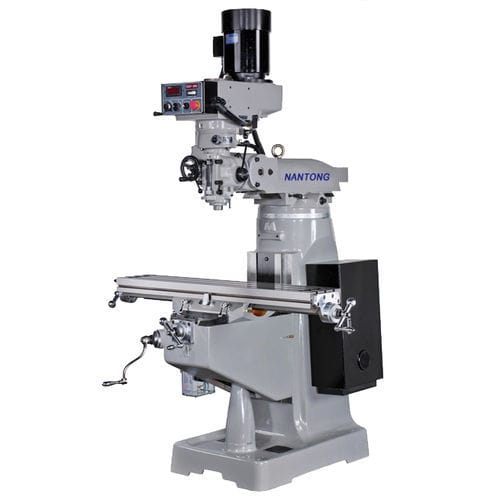

3-axis milling machine YJ-XW6330

verticalvariable speed

Table Size T-slot (Q size x size) for table 280x1320mm (11 "x 52") Table 3x16mm (3x0.629 ") Longitudinal Travel X-axis Brochure 920 mm (36") Car 840 mm Y-axis) 380 mm (15 ") Knee Vertical Travel (Z-axis) 406 mm (15.984") Ram Travel 485 mm (19 ") Quill Travel 140mm (5.5") Spindle Taper NST # 40) Spindle to Desktop Nose 60 ~466mm (2.4 "~ 18.3") Spindle Center to Column 190 to 675 mm (7.5 "~ 26.6") Head Rotation (R & L) +/- 45 ゜ Spindle Motor 5HPX Axis Motor Options: Powered Lifting Motor 1HP Lifting Motor Cooling Pump 1/8-20 Quail feed 0.035~0.007~0.14mm / rpm (0.0014 "~ 0.003" ~ 0.006 ") Spindle Speed Step 50Hz Low: 62.5~416 High: 458~3000 60Hz low: 75 ~ 500 high: 550 ~ 3600 variable speed head low: 0 ~ 480 Height: 0 to 3600 Overall Height 2245 mm Overall Depth 2080 mm Overall Width 1775 mm (70 ") Net Weight 1700 Kgs (3740 lbs)
