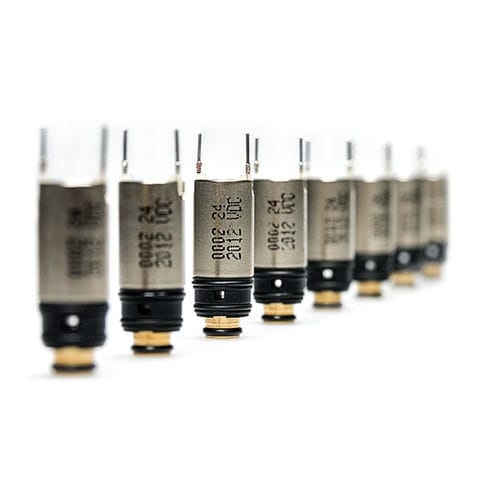

Direct-operated solenoid valve C9

3/2-wayNONC

The C9 is a pneumatic 3/2-way valve, which supports with its diameter of 9.5 mm, the minimization of space requirements. This small valve can be used both in the normal industrial pneumatics as well as in medical technology. Connection ports Particularly advantageous is the serial pneumatic port 1 (input) / 2 (work output) / 3 (venting), which is built in only one cavity in succession. With more than 50 million cycles, the C 9 is a solid continuous hit. Voltage range For use in mobile applications such as portable and battery-operated devices, the valve cartridge 9 operating voltages 6, 12, 24 V for low power (less than 1 W). Switching function The cartridge 9 valve is of course also as a 2/2-way version NC and NO available. Adaptations to individual requirements of the respective field of application can be realized or need the consent of nass magnet. Application areas Whether industrial pneumatics, automotive and mobile applications or medical technology - the C9 is a good solution and allows by its size in the smallest space enormous design possibilities. The electrical connection allows the contact through a custom connector version or on a circuit board. Gladly, the manufacturer will assist in designing the connection geometry. Visitors of the exhibition 'Compamed' can check all the details to the C 9 and of course to all other products of the extensive portfolio of nass magnet and get personally advise from the manufacturer.
