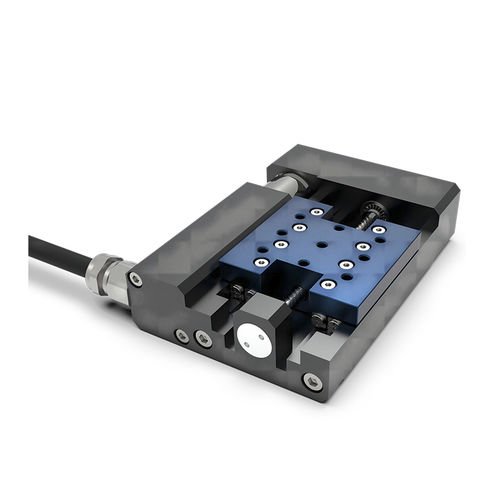

Micrometric stage E-SVMMS60-X25linearlinear motor-driven1-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- linear motor-driven
- Number of axes
- 1-axis
- Other characteristics
- sub-micron precision, compact, industrial, measurement, micrometric
- Stroke
25 mm
(0.984 in)- Speed
Max.: 20 mm/s
Min.: 0 mm/s
- Repeatability
0.15 µm
- Load
Max.: 3 kg
(6.61 lb)Min.: 0 kg
(0 lb)
Description
Highly accurate position measuring with incremental linear encoder
Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.
