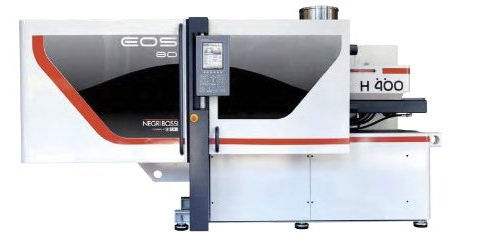

horizontal injection molding machine / hydraulic / tie-bar-less
max. 2 210 bar, 500 000 N | Eos V50 series

{{requestButtons}}

Characteristics

  • Closure:

    horizontal

  • Operation:

    hydraulic

  • Other characteristics:

    tie-bar-less

  • Clamping force:

    500,000 N

Description

Brand new, result of a meticulous design, the new EOS machine sets a new record in terms of compactness, cutting from 5 to 3.5 meters the floor space needed, compared to previous models.
The wide tie bar spacing, combined with a long opening stroke, allows complex moulds to be easily mounted, making the machine the ideal product for applications from different sectors.
The clamping unit adopts a two platen solution with the moving platen sliding on prismatic guides and re-circulating ball bearings. This solution provides an excellent parallelism between the platens and ensures cleanliness in the moulding area due to the absence of lubrication oil . The injection unit, which slides on two prismatic guides with re-circulating ball bearings, is equipped with two cylinders directly coupled hydraulically, pulling in tandem during the injection phase and a bi-metallic plasticising barrel which ensures a long life even when processing very abrasive materials.
The cantilevered clamping system design allows a free open area below the mould, enabling products to be transported away in any direction and providing space for placing ancillary equipment.
The new software control Orion allows optimal management of all moulding phases and set up of the machine in an easy and intuitive way.
