horizontal injection molding machine / electric
1 200 kN | Eleos V120

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

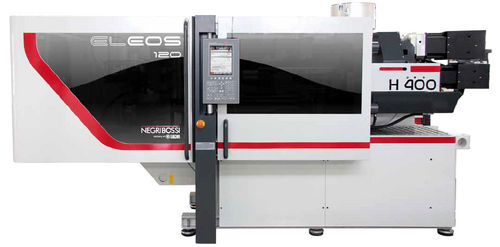

horizontal injection molding machine / electric horizontal injection molding machine / electric - 1 200 kN | Eleos V120
{{requestButtons}}

Characteristics

  • Closure:

    horizontal

  • Operation:

    electric

  • Clamping force:

    1,200,000 N

Description

Natural development of the hydraulic EOS series, the new ELEOS machine maintains its extremely reduced dimensions, thus confirming this model amongst the most compact machines in its category.
Moving platen stroke is electric and is performed by two re-circulating ball screws driven by synchronous motor.
The electric clamping phase, combined with the full electric clamping unit, allow a precise and efficient management of injection-compression function.
The secondary small hydraulic circuit can be used for both ejector and core movements
The moving platens slide on prismatic linear guides and provide an excellent parallelism between them, ensuring cleanliness in the moulding area due to the absence of lubrication oil.
