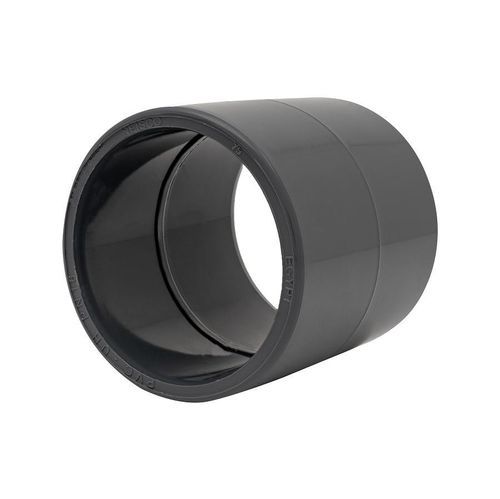

Socket SO10 series

Short description
uPVC pressure fitting socket for solvent cement jointing (Metric series).

Product information

• Brand: U-PVC PRESSURE FITTINGS
• Category: Metric series for solvent cement jointing
• SKU:

Summary
Socket (SO10) designed for solvent cement jointing in pressure pipe systems. Available in a wide range of diameters and pressure ratings to suit water and industrial piping applications.

Datasheet (table)
Code | d | L | Z | E | PN | GR. | Pack | Size
SO10N0200 | 20 | 16 | 3 | 27 | 16 | 15 | 380 | S
SO10N0250 | 25 | 19 | 3 | 33 | 16 | 23 | 500 | M
SO10N0320 | 32 | 22 | 3 | 41 | 16 | 36 | 300 | M
SO10N0400 | 40 | 26 | 3 | 51 | 16 | 60 | 200 | M
SO10N0500 | 50 | 31 | 3 | 61 | 16 | 85 | 220 | L
SO10N0630 | 63 | 38 | 3 | 76 | 16 | 145 | 125 | L
SO10N0750 | 75 | 44 | 4 | 90 | 16 | 214 | 85 | L
SO10N0900 | 90 | 51 | 5 | 108 | 16 | 365 | 45 | L
SO10N1100 | 110 | 61 | 6 | 131 | 16 | 520 | 27 | L
SO10N1250 | 125 | 69 | 6 | 148 | 16 | 807 | 20 | L
SO10N1400 | 140 | 76 | 8 | 165 | 16 | 1100 | 12 | L
SO10N1600 | 160 | 86 | 8 | 188 | 16 | 1400 | 6 | L
SO10N2000 | 200 | 106 | 8 | 226 | 10 | 2660 | 4 | L
SO10N2250 | 225 | 119 | 12 | 258 | 10 | 4436 | 2 | L
SO10N2500 | 250 | 131 | 12 | 288 | 10 | 0 | 0 | L
SO10N3150 | 315 | 164 | 14 | 360 | 10 | 0 | 0 | L

Characteristics / technical specifications

• Type: Metric series for solvent cement jointing
• Product: Socket (uPVC pressure fitting)
• Material: uPVC
• Available model codes and corresponding dimensions listed in the datasheet above (e.g. SO10N0200 to SO10N3150)
• Pressure rating: PN values shown in the datasheet
• Packing quantities: Pack column in the datasheet
