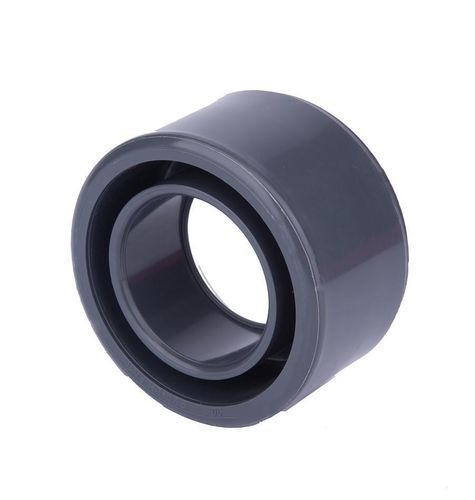

Reducing bushing RB90 series

socket weldPVCpolyvinyl chloride

Description
Reducing bush designed for solvent-cement jointing in metric UPVC piping systems; available in multiple diameter variants (see datasheet).

Product details

• Brand: U-PVC PRESSURE FITTINGS
• Category: Metric series for solvent cement jointing
• SKU: —

Summary
RB90 reducing bush for connecting different pipe diameters in UPVC pressure systems.

Datasheet (table)
Code, dxd1, L, L1, Z, Fig, PN, Gr, Pack, Box
RB90N025B, 25x20, 19, 16, 3, A, 16, 4, 700, S
RB90N032B, 32x20, 22, 16, 6, A, 16, 15, 450, S
RB90N032C, 32x25, 22, 19, 3, A, 16, 10, 450, S
RB90N040B, 40x20, 26, 16, 10, B, 16, 25, 270, S
RB90N040C, 40x25, 26, 19, 7, A, 16, 28, 270, S
RB90N040D, 40x32, 26, 22, 4, A, 16, 16, 270, S
RB90N050C, 50x25, 31, 19, 14, B, 16, 45, 350, M
RB90N050D, 50x32, 31, 22, 9, B, 16, 41, 350, M
RB90N050E, 50x40, 31, 26, 5, A, 16, 31, 350, M
RB90N063C, 63x25, 38, 19, 19, B, 16, 71, 180, M
RB90N063D, 63x32, 38, 22, 16, B, 16, 73, 180, M
RB90N063E, 63x40, 38, 26, 12, B, 16, 76, 180, M
RB90N063F, 63x50, 38, 31, 7, A, 16, 61, 180, M
RB90N075D, 75x32, 44, 22, 22, B, 16, 128, 110, M
RB90N075E, 75x40, 44, 26, 18, B, 16, 102, 110, M
RB90N075F, 75x50, 44, 31, 14, B, 16, 122, 110, M
RB90N075G, 75x63, 44, 38, 6, A, 16, 85, 110, M
RB90N090F, 90x50, 51, 31, 20, B, 16, 171, 65, M
RB90N090G, 90x63, 51, 38, 13, B, 16, 166, 65, M
RB90N090H, 90x75, 51, 44, 7, A, 16, 140, 65, M
RB90N110G, 110x63, 61, 38, 23, B, 16, 254, 40, M
RB90N110H, 110x75, 61, 44, 17, B, 16, 262, 40, M
RB90N110I, 110x90, 61, 51, 10, A, 16, 266, 40, M
RB90N125L, 125x110, 68.5, 61, 8, A, 16, 260, 50, L
RB90N140I, 140x90, 76, 51, 25, B, 16, 600, 40, L
RB90N140M, 140x125, 76, 68.5, 7, A, 16, 335, 40, L
RB90N160I, 160x90, 86, 51, 30, B, 16, 850, 24, L
RB90N160L, 160x110, 86, 61, 25, B, 16, 820, 24, L
RB90N160M, 160X125, 86, 68.5, 17, B, 16, 745, 24, L
RB90N160N, 160x140, 86, 76, 10, A, 16, 565, 24, L
RB90N200O, 200X160, 106, 86, 20, B, 10, 1381, 12, L
RB90N225O, 225x160, 118.5, 86, 33, B, 10, 2411, 7, L
RB90N225P, 225x200, 118.5, 106, 13, A, 10, 1408, 7, L
RB90N250O, 250x160, 131, 86, 47, B, 10, 2798, 6, L
RB90N250P, 250x200, 131, 106, 27, B, 10, 1752, 4, L
RB90N250Q, 250x225, 131, 118.5, 12, A, 10, 2.1, 6, L

Characteristics / technical specifications

• Model: RB90
• Product type: Reducing bush (Reducing BUSH)
• Material: UPVC (U-PVC PRESSURE FITTINGS)
• Series: Metric series for solvent cement jointing
• Available sizes and codes: see datasheet table above (codes RB90N025B → RB90N250Q)
• Typical PN rating: values shown per variant in the PN column of the table
• Packing indicators: Pack / Box columns indicate packaging
