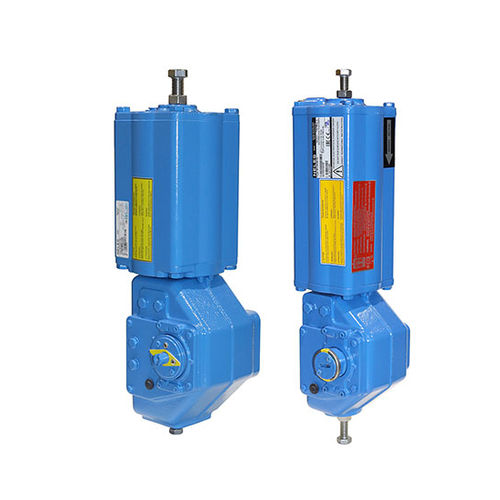

Pneumatic actuator B1 seriesrotarypistoncylinder
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Technology
- piston, cylinder
- Norms
- ISO
- Protection class
- IP66, IP67, rugged
- Applications
- control
- Other characteristics
- precision, double, wide
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 2.8 bar
(40.61 psi)- Torque
Max.: 100,000 Nm
(73,756.215 ft.lb)Min.: 28 Nm
(20.652 ft.lb)- Operating Temperature
Max.: 120 °C
(248 °F)Min.: -55 °C
(-67 °F)
Description
Neles double acting and spring return B1-series piston type quarter turn actuators are designed for use in both modulating control and on-off service. These actuators offer an extremely long cycle life and are well suited to operate almost any type of rotary valve.
Features
Wear and corrosion resistant design
Safe and easy maintenance
Suitable for various services, from control to demanding ESD and arctic conditions
Vast number of optional features
Rugged design
Wide torque range
Type approval according to EN 15714-3
Applications
Emergency shutdown
Compressor anti-surge
High cycle control and on-off applications
High precision control
Arctic service
