Pneumatic actuator VC series linearpistoncontrol
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- linear
- Technology
- piston
- Applications
- control
- Other characteristics
- integrated, double, wide, mechanical
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 2 bar
(29.01 psi)- Operating Temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)
Description

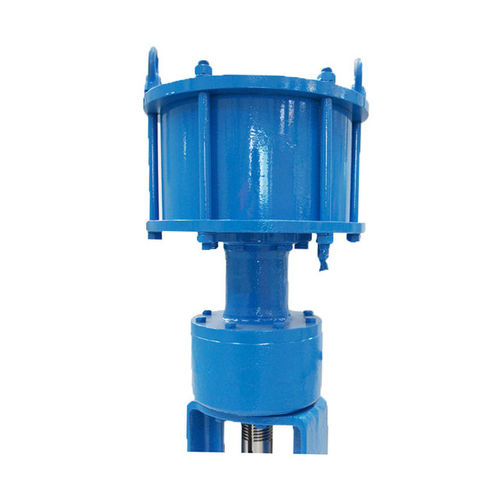

Neles double acting VC series piston type linear actuators are designed for use in both modulating control and on-off service. These actuators offer an extremely long cycle life and are well suited to operate linear valves with medium to high thrust requirements.
Features
Heavy duty actuator designed for linear modulating control and on/off applications
Corrosion resistance coating against severe weather, chemical and petroleum environments
Wide thrust range
High thrust performance by self lubricating piston seal in cylinder
Optional handwheel for manual mode, volume tank and volume chamber available
Mechanical position limitation
Safe and easy maintenance
Suitable for various applications from general to severe service
Suitable for safety integrated systems up to and including SIL 3 in accordance with IEC 61508
