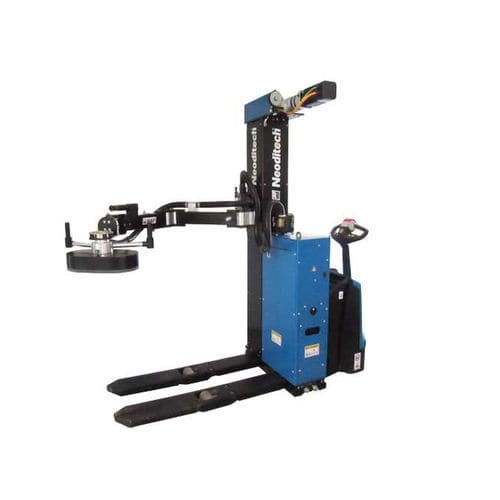

Electric manipulator arm MAP002

with gripping toolfor workstationsfor materials handling

NEODITECH’s Picking Cobot is an autonomous articulated arm, designed to optimize picking and logistics operations. Mounted on an electric pallet truck, it can handle loads weighing up to 100kg safely, thus considerably reducing physical efforts and the risks of musculoskeletal disorders (MSDs). Complete mobility Easily moves between different workstations. Precision and smoothness Vertical stroke of 1,40m and intuitive frontal grip. Physical efforts reduction Prevents fatigue and decreases the risks of injuries. Adapted to logistics Handling of loads stocked in racks or under shelves. Radius 2m - Vertical travel 1400mm • Capacity 100kg at 2m including gripper • Detachable control handle • Depth : 464mm approx • Recommanded fork length : 1600mm • Embedded in an electric pallet truck • Self-sufficient in electrical and suction energy ENERGY Battery lifetime : 3600 charge cycles • Lead batteries : 4x12V (48V) • Deep discharge safety device • 6h to 24h autonomy (depending on application) • Recharging time : 2h on 230V socket
