Free-standing jib crane

electricmobile

Overview

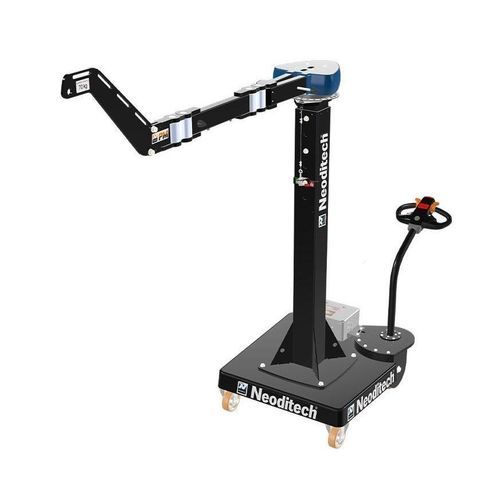

The Neoditech Potence Mobile is a self-contained, mobile lifting device designed for ergonomic handling of medium-weight loads. It fully compensates the weight of the load so the operator can guide the part without carrying it, reducing strain and the risk of musculoskeletal disorders (MSDs).

Operating principle
The jib consists of a swivel arm mounted on a movable base. The arm rotates freely over 350° and provides a standard working radius of 2.0 m. Lifting height is continuously adjustable between 2.5 and 3.8 m to match the workstation height. The jib fully compensates the load weight for effortless guidance.

Models and capacities
The range includes two standard models: Potence Mobile 70 (WLL 70 kg) and Potence Mobile 100 (WLL 100 kg). An extended-arm option increases the reach to 2.7 m with a reduced WLL depending on the model.

Options and mobility
Base available with freestanding feet for occasional repositioning or with an electric wheel for daily mobility. Fully autonomous solution: no electrical supply or compressed air required in standard configuration. No floor anchoring required, immediate commissioning without civil works.

Compatible end-effectors

• Hook: lifting with slings or shackles
• Vacuum spreader: handling flat surfaces (sheets, glazing, plates)
• Lifting tube: quick repeated pick-and-place of boxes, bags, drums
• Expansion gripper: internal gripping of coils, rolls or cylindrical drums
• Bag vacuum: specifically for sacks in agri-food and chemical industries
• Custom gripper: designed for specific geometries

Usage configurations
Two standard models (70 kg / 100 kg) and an extended-arm option for stations requiring greater reach. The extended-arm option modifies the WLL (e.g. Potence Mobile 70 → 50 kg in extended version; Potence Mobile 100 → 70 kg in extended version).

Compliance and manufacturing
Designed and manufactured in France. Compliant with Machinery Directive 2006/42/EC and CE marked.

Features / technical specifications

• Range: Potence Mobile (series Potence Mobile)
• Standard models: Potence Mobile 70, Potence Mobile 100
• Standard capacities (WLL): 70 kg and 100 kg
• Standard working radius: 2.0 meters
• Extended-arm option: working radius 2.7 meters (reduced WLL: Potence 70 → 50 kg / Potence 100 → 70 kg)
• Lifting stroke (adjustable height): continuous 2.5 m to 3.8 m
• Arm rotation: 350°
• Base: freestanding feet or version with electric wheel
• Power: autonomous solution in standard configuration (no electrical supply or compressed air required)
• Installation: no floor anchoring required, quick commissioning
• Compatible end-effectors: hooks, vacuum spreaders, lifting tubes, expansion grippers, bag vacuums, custom grippers
• Compliance: Machinery Directive 2006/42/EC, CE marked
• Origin: designed and manufactured in France
