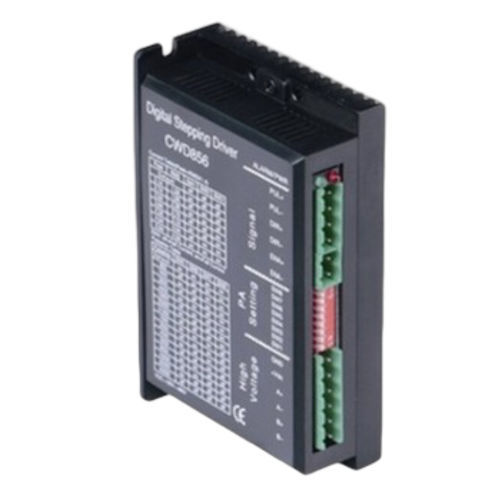

DC motor driver CWD556

low-voltagewith integrated controllertwo-phase stepper

Overview
The CWD556 is a compact digital 2-phase stepper driver based on a 32-bit DSP processor, designed for industrial motion control. It supports 20–50 VDC and output currents from 2.1 to 5.6 A, integrates anti-resonance control and an online adaptive PID for improved stability, and provides optically isolated control inputs for reliable operation in noisy environments.

Key Highlights

• 32-bit DSP processor with anti-resonance control
• Online adaptive PID algorithm for dynamic tuning
• Optically isolated control inputs (Pulse/Direction or CW/CCW)
• Low noise and vibration with low temperature rise
• 16 microstep settings up to 51,200 steps/rev
• Compact footprint: 118 × 75 × 34 mm, weight 0.3 kg

Electrical Specifications

• Model: CWD556
• Phase: 2
• Input voltage: 20–50 VDC
• Output current: 2.1–5.6 A
• Microstep settings: 16 (up to 51,200 steps/rev)
• Control signal: Pulse/Direction or CW/CCW
• Pulse frequency: 0–200 kHz
• Processor: 32-bit DSP
• Isolation: Optically isolated I/O

Applications

• CNC machinery, robotics and automated assembly
• Indexing tables and gantry systems
• Laboratory and medical automation where compatible
• OEM motion control and retrofit solutions

Mechanical drawing
Mechanical drawing available for model CWD556 showing mounting points and dimensional details (118 × 75 × 34 mm).

Technical specifications

• Dimensions: 118 × 75 × 34 mm
• Weight: 0.3 kg
• Operating temperature: standard industrial range (consult datasheet)
• Inputs: optically isolated for improved noise immunity
