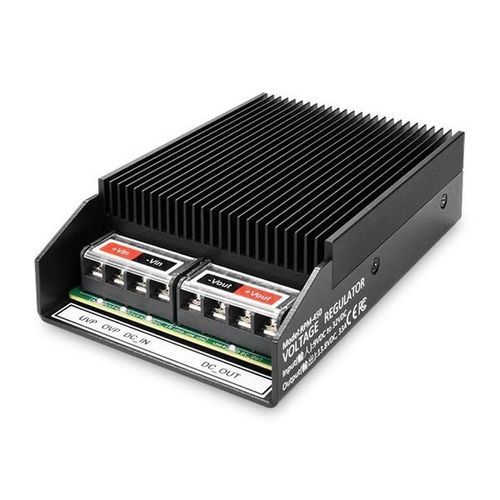

Isolated DC/DC converter RPM-450

step-upstep-downregulated

Product Overview The Neousys RPM-450 is a rugged buck-boost DC-DC converter that delivers a stable 13.8 V / 450 W output across a wide 9–32 V input range. Designed for 12 V / 24 V in-vehicle power systems and industrial applications, it smooths voltage fluctuations to ensure uninterrupted operation of high-power electronics. Even when input voltage drops to 9 V, the RPM-450 sustains a steady 13.8 V output, keeping back-end devices such as GPU computers running reliably without resets or power dropouts. Built for harsh environments, the RPM-450 operates fanlessly from −25 °C to +70 °C. Its compact form factor fits tight spaces, shortens cable runs, and reduces integration costs, while 94–96% efficiency minimizes self-heating and simplifies thermal management. The RPM-450 also features millisecond-level Undervoltage/Overvoltage Protection (UVP/OVP) with automatic recovery to safeguard back-end systems against unexpected voltage fluctuations. In addition, hardware Overcurrent/Short-Circuit Protection (OCP/SCP) prevents damage from overloads, and reverse-polarity protection guards against wiring errors. Front-panel LED indicators provide instant input/output status for quick diagnostics and reduced downtime. Stable power is the foundation of edge AI applications. The Neousys RPM-450 provides a reliable 13.8 V backbone for GPU computer systems—delivering consistent performance under variable input, reducing unexpected reboots, and extending system uptime. Key Features - 9–32V DC input with regulated 13.8V output, up to 450W - 94–96% conversion efficiency - Rugged, -40°C to 70°C fanless operation - Comprehensive protections: OVP, UVP, OCP, SCP and RPP - Real-time monitoring DCIN and ultra-precise control of DCOUT by MCU - EN55032 & EN55035 class A Specifications Input Characteristics - Input voltage: 9V to 32V - Undervoltage shutdown: 8.5V - Undervoltage recovery: 8.9V, Automatic recovery - Overvoltage shutdown: 34V - Overvoltage recovery: 32.3V, Automatic recovery - Input current: Max. 50A, per pin 25A - No load current: 156mA Output Characteristics (Vin=13.8V; Iout=33A, RT=25°C) - Efficiency: 94% - Output voltage: 13.8V - Output current: 0 ~ 33A - Rated Power: 450W - Over Current Protection: 47A - Output ripple and noise: 120mV - Output voltage rise time: 3.38ms - Boot delay time: 216ms - Voltage regulation: ±1% - Load regulation: ±1% Protection - UVP: OFF ≤ 8.5 V, ON ≥ 8.9 V; auto‑recovery - OVP: OFF ≥ 34 V, ON ≤ 32.3 V; auto‑recovery - OCP: Trips at 47 A; power‑cycle to restore output - SCP: Survives 2 h short-circuit; power‑cycle to restore output - RPP: Reverse‑input protected up to 38 V without damage Mechanical - Dimension: 144.1 × 95 × 41.2 mm - Weight: 0.8Kg - Mounting: Wall-mount (standard), DIN-rail mount (optional) - Positive/Negative electrode cable (input/output): Use O- or Y-type rings; outer Ø ≤ 8.2 mm, inner Ø ≥ M3.5 screw Environmental and Safety - EMC: CE/FCC Class A, according to EN 55032 & EN 55035 - Operating Temperature: RPM-450: -25°C ~ 70°C - Storage Temperature: -40°C ~ 85°C - Humidity: 5%~90%, non-condensing - Switching Frequency: 350KHz Ordering Information - RPM-450: 450W 9-32V to 13.8V Buck-Boost Voltage Regulator Module for DC Systems, -25°C ~ 70°C - Optional Accessory: DINRAIL-RPM-450 – DIN Rail mount for RPM-450 Technical Characteristics / Specifications - Model: RPM-450 - Input voltage: 9V to 32V - Output voltage: 13.8V - Rated Power: 450W - Efficiency: 94–96% - Operating Temperature: -25°C ~ 70°C - Protections: OVP, UVP, OCP, SCP, RPP - Dimensions: 144.1 × 95 × 41.2 mm - Weight: 0.8kg - Mounting: Wall-mount (standard), DIN-rail mount (optional) - Certification: CE/FCC Class A, EN 55032 & EN 55035
