Induction motor AHE3 series
three-phase400 V380 V

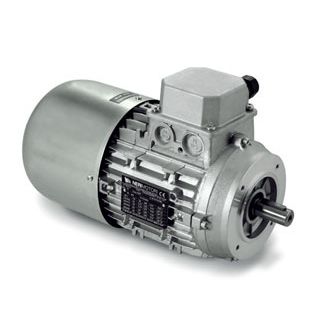

Induction motor - AHE3 series - Neri Motori - three-phase / 400 V / 380 V
Induction motor - AHE3 series - Neri Motori - three-phase / 400 V / 380 V
Add to favorites
Compare this product

Characteristics

Type
induction, three-phase
Voltage
400 V, 380 V
Configuration
self-braking
Efficiency classes
IE3
Number of poles
4-pole, 2-pole, 6-pole
Applications
industrial
Other characteristics
IEC
Power

Max.: 37 kW
(50.31 hp)

Min.: 0.06 kW
(0.08 hp)

Intensity

Max.: 32.85 A

Min.: 1.87 A

Torque

Max.: 180.2 Nm
(132.908699 ft.lb)

Min.: 2.5 Nm
(1.843905 ft.lb)

Rotational speed

Max.: 2,965 rpm
(18,629.6444 rad.min-1)

Min.: 940 rpm
(5,906.1942 rad.min-1)

Description

Series AHE3 2/4/6 poles Three-phase induction brake motors are the effective and efficient solution to guarantee safety brake action or work. Three-phase motors are available according to IEC international standards from size 50 to size 200. In versions with flange B5, B14 and feet B3. Single polarities 2/4/6/8/12. The Brakes are available both n alternating current and continuous current.
