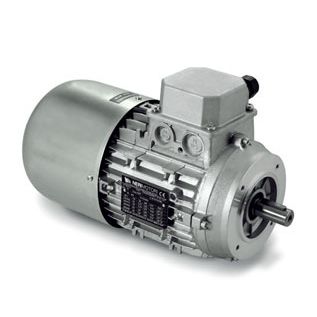

Three-phase motor AI series
induction400 V230 V

three-phase motor
three-phase motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
induction
Voltage
400 V, 230 V, 690 V
Configuration
with AC brake, with DC brake, self-braking
Number of poles
4-pole, 6-pole, 2-pole
Power

Max.: 37 kW
(50.306 hp)

Min.: 0.02 kW
(0.027 hp)

Torque

Max.: 210.19 Nm
(155.0282 ft.lb)

Min.: 0.07 Nm
(0.0516 ft.lb)

Rotational speed

Max.: 7,200 rpm
(45,238.93 rad.min-1)

Min.: 1,000 rpm
(6,283.19 rad.min-1)

Description

Series AI 2/4/6 poles Three-phase induction brake motors are the effective and efficient solution to guarantee safety brake action or work. Three-phase motors are available according to IEC international standards from size 50 to size 200. In versions with flange B5, B14 and feet B3. Single polarities 2/4/6/8/12. The Brakes are available both n alternating current and continuous current. The brake always has the standard separate power supply.
