MIMO access point WAX620PA

wifi 6WiFidual-band

Overview

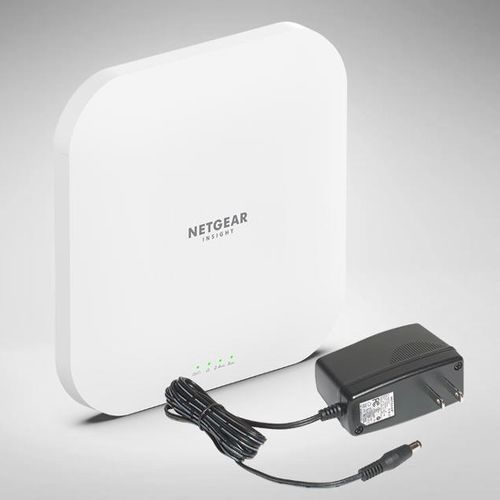

The WAX620PA is an AX3600 dual-band WiFi 6 access point designed to deliver enterprise-grade features in small and medium business deployments. Includes power adapter. It supports high-density environments with simplified cloud or standalone management via NETGEAR Insight.

Key features

• AX3600 dual-band WiFi 6 with 8 spatial streams: up to 2.4 Gbps (5 GHz) and 1.2 Gbps (2.4 GHz)
• Designed for high-density venues: schools, hotels, restaurants and conference centers
• Improved network capacity and efficiency for many simultaneous connections and better device battery life
• Wireless mesh capability (dual-band, shared backhaul) compatible with WAX620, WAX610, WAX610Y, WAC540, WAC564
• Multi-Gig wired uplink: 1 x 2.5 Gbps Ethernet port
• Enterprise-grade security: WPA3, up to 8 SSIDs with VLAN separation
• Remote management: NETGEAR Insight (cloud) or standalone mode
• Flexible mounting: wall or suspended ceiling with included hardware
• Includes 1-Year NETGEAR Insight subscription (as noted on product images)

Product highlights / Details

• Model: WAX620PA
• Ports: 1 x 2.5G Ethernet
• PoE: Not applicable for this SKU (power adapter included)
• Maximum users (devices): up to 256
• Concurrent users (recommended): up to 75
• Ideal use: Small and Medium Business (SMB)

Additional information

• Simplified enterprise-grade networking and security tailored for smaller organizations
• Mesh networking with shared backhaul for wire-free extension and seamless roaming
• Monitor and manage remotely via NETGEAR Insight cloud portal and mobile app

Physical Specification (table)
Dimensions (W x D x H): 205.7 x 205.7 x 34.3 mm (8.09 x 8.09 x 1.35 in)
Weight: 783 g (1.72 lb)

Technical specifications

• Model: WAX620PA
• Speed: AX3600
• Number of max users: 256
• Concurrent users (recommended): 75
• Ethernet port: 1 x 2.5 Gbps
• PoE: No (power adapter included)
• Wireless Mesh: Yes — dual band with shared backhaul; compatible with WAX610, WAX610Y, WAC540, WAC564
• Management: NETGEAR Insight (cloud) or standalone
• Security: WPA3; up to 8 SSIDs; VLAN support
• Includes: Power adapter and 1-Year NETGEAR Insight subscription (as shown on product)
