Wireless communication router MR7400

dataWiFi access pointcellular

Short description

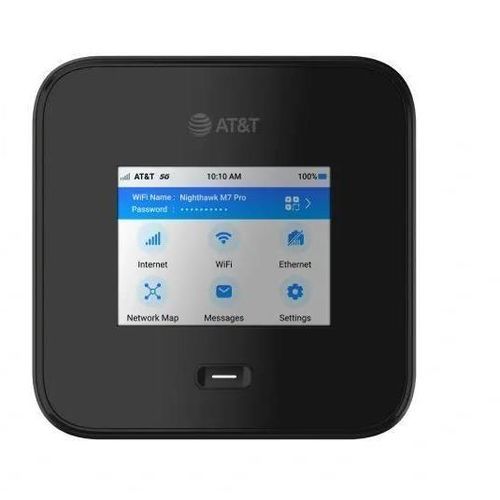

The Nighthawk® M7 Pro is a mobile 5G WiFi 7 hotspot router for AT&T, combining tri-band WiFi (2.4/5/6 GHz) and Sub-6 5G connectivity to provide multi-gig wireless throughput and support for up to 64 concurrent devices.

Features and benefits

• WiFi 7 with multi-link operation and 6 GHz support for higher throughput and reduced latency
• 5G Sub-6 connectivity with Qualcomm Snapdragon® X75 modem for advanced 5G capabilities and high peak rates
• Tri-band WiFi delivering multi-gig PHY rates across 2.4/5/6 GHz bands
• Supports up to 64 concurrent devices
• Flexible wired options: 2.5 Gbps Ethernet and high-speed USB-C tethering (up to 10 Gbps)
• Removable 5185 mAh Li-ion battery for portable use (up to 13 hours; actual varies)
• 2.8 in color touch LCD for local setup and monitoring; web interface and NETGEAR Insight Pro remote management
• Built-in security: URL filtering, device blocking and LCD passcode locking

Product overview
The Nighthawk® M7 Pro pairs next-generation tri-band WiFi 7 with advanced 5G Sub-6 connectivity. It delivers multi-gigabit wireless performance over 2.4/5/6 GHz, supports a large number of simultaneous connections, and offers flexible wired connectivity including a 2.5 Gbps Ethernet port and a high-speed USB Type-C port for tethering. The device features a removable 5185 mAh battery and a 2.8 in touch LCD for on-device control. Remote deployment and management are available via NETGEAR Insight Pro (subscription may be required).

What’s new / Highlights

• WiFi 7 with multi-link operation and 6 GHz band for higher throughput and lower latency
• Enhanced 5G performance with Qualcomm Snapdragon® X75 modem enabling multi-gig peak rates on supported networks
• Improved wired connectivity: 2.5 Gbps Ethernet and up to 10 Gbps USB-C tethering

Technical details (table)
Height: 4.13 in
Width: 4.13 in
Depth: 0.85 in
Weight: 0.54 lb (with battery)
WiFi: WiFi 7 (tri-band: 2.4/5/6 GHz)
Max WiFi throughput (PHY): 2.4 GHz: 688 Mbps; 5 GHz: 2882 Mbps; 6 GHz: 5764 Mbps
5G: Sub-6 NR with NR-CA support; Snapdragon X75 modem
4G LTE: CAT20 support
Battery: Removable 5185 mAh Li-ion (up to 13 hours; actual varies)
Ports: 1 × USB Type-C; 1 × 2.5 Gbps Ethernet; 2 × TS9 RF ports
Chipset/modem: Qualcomm Snapdragon® X75 5G Modem-RF System
Devices supported: Up to 64 concurrent devices
Coverage (typical): Up to ~2,000 sq. ft.

Technical specifications

• Model: Nighthawk® M7 Pro
• WiFi standard: WiFi 7 (2.4/5/6 GHz)
• Peak PHY rates: 2.4 GHz 688 Mbps; 5 GHz 2882 Mbps; 6 GHz 5764 Mbps
• 5G modem: Qualcomm Snapdragon® X75
• Ethernet: 1 × 2.5 Gbps
• USB: 1 × USB Type-C (high-speed tethering up to 10 Gbps)
• RF ports: 2 × TS9
• Display: 2.8 in color touch LCD
• Battery: Removable 5185 mAh Li-ion
• Dimensions: 4.13 in × 4.13 in × 0.85 in
• Weight: 0.54 lb (with battery)
• Management: Touchscreen UI, web interface, NETGEAR Insight Pro
• Security: URL filtering, device blocking, LCD passcode lock
• Intended use: Portable 5G connectivity, travel, home backup, small teams and events
