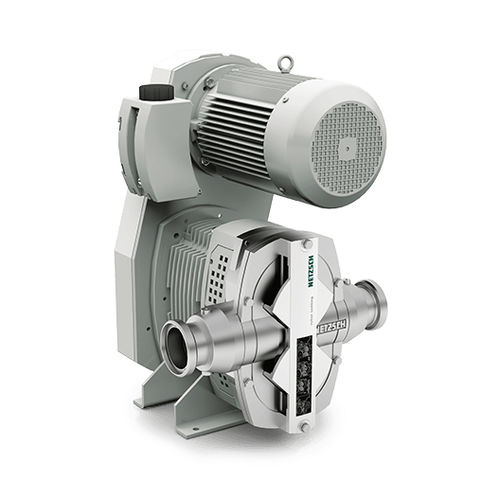

Rotary lobe pump TORNADO® T.Sano®
for chemicalsfor food productswith electric motor

rotary lobe pump
rotary lobe pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals, for food products
Operation
with electric motor
Priming
self-priming
Technology
rotary lobe
Domain
for the chemical industry, for the food industry, for pharmaceutical applications, for hygienic applications, for the cosmetics industry
Applications
transfer, metering, process, for industrial applications, conveying
Material
metal
Fluid specification
for aggressive media, for abrasive fluids, for medium-viscosity products, for solids-laden fluids, for high-viscosity fluids, for low-viscosity fluids
Mobility
mobile
Other characteristics
oil-free
Flow

Max.: 119 m³/h (4,202.4453 ft³/h)

Min.: 0.5 m³/h (17.6573 ft³/h)

Pressure

6 bar, 8 bar, 10 bar (87.023 psi)

Description

The TORNADO® T.Sano® rotary lobe pump in all-metal design is the optimum solution for your applications in the hygiene sector due to its oil and dead space free design. It is also easy to maintain thanks to the FSIP® (Full Service In Place) concept. Primarily, the all-metal pump is used in the chemical, cosmetical, food and pharmaceutical sectors. With the self-priming rotary lobe pump in all-metal design, you can reliably convey abrasive and aggressive media. Even adhesive or shear-sensitive substances with high hygienic requirements are no challenge for the powerful pump. Like its sister for industrial applications in elastomer/metal design, it delivers continuously and constantly. Dosing by speed is also possible. The dead space free design prevents contamination of the media. For the residue-free cleaning of the pump, you can use the proven CIP (Cleaning-In-Place) process and the SIP (Sterilization-In-Place) process. Which allows the system to be cleaned or sterilized in a circular or continuous process without prior disassembly. Even maintenance is possible without removal from the pipeline, thanks to the FSIP® concept. With the help of the setting device mounted in front of the pump cover, you can optimally position the rotors after servicing. This is even possible without expensive special tools. Besides, the rotors can be installed and removed independently of each other.
