Planetary gear reducer PLFE
coaxialsolid-shaft20 - 50 Nm

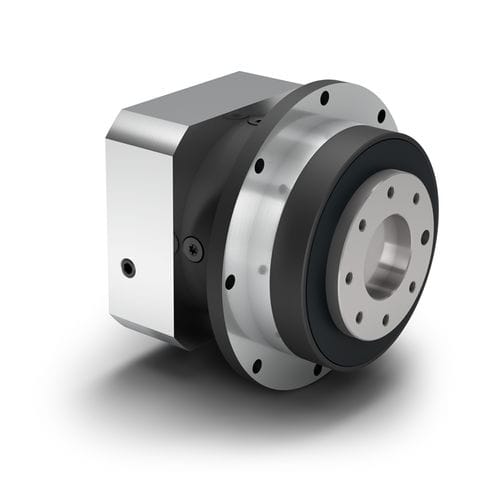

Planetary gear reducer - PLFE - Neugart GmbH - coaxial / solid-shaft / 20 - 50 Nm
Planetary gear reducer - PLFE - Neugart GmbH - coaxial / solid-shaft / 20 - 50 Nm
Planetary gear reducer - PLFE - Neugart GmbH - coaxial / solid-shaft / 20 - 50 Nm - image - 2
Planetary gear reducer - PLFE - Neugart GmbH - coaxial / solid-shaft / 20 - 50 Nm - image - 3
Planetary gear reducer - PLFE - Neugart GmbH - coaxial / solid-shaft / 20 - 50 Nm - image - 4
Add to favorites
Compare this product

Characteristics

Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
20 - 50 Nm, 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 10 - 20 Nm
Mounting
flange-mounted
Configuration
compact, modular
Number of stages
single-stage, dual-stage
Performance
high-performance, low-backlash, high-efficiency, maintenance-free, high-rigidity, high-speed
Applications
transmission, for servo motors, for conveyor, for lifting applications, for robots, for automation, for material handling equipment, packaging machine, for agricultural machinery, for machine tools, for food industry machinery
Other characteristics
mechanical transmission

Description

There’s no such thing as too short: The PLFE is our planetary gearbox with compact flange output shaft. You save more than a third of the space and benefit from a torsional stiffness that is five times higher than conventional products. Due to its standardized flange interface, it is especially easy to install. The integrated dowel hole provides additional secureness during fitting.
