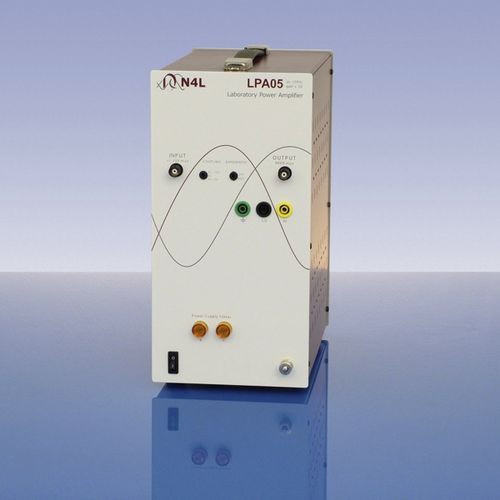

Power amplifier LPA05 series
wide-bandfor laboratories

power amplifier
power amplifier
power amplifier
power amplifier
power amplifier
power amplifier
Add to favorites
Compare this product


Characteristics

Type
power
Other characteristics
wide-band, for laboratories
Voltage

36 V, 40 V, 80 V

Current

3 A, 5 A

Description

Wide bandwidth signal amplification at up to 8 A is provided by the LPA05A & LPA05B. It can be used in an extending range of industrial as well as laboratory applications. It is designed for the PSM range frequency response analyzers originally but it can be used anywhere where boosting of signal in voltage or current is needed. The DC accuracy is combined with the wide bandwidth so as to perfectly reproduce complex waveforms, driving loads which may be capacitive, inductive or resistive. Additionally, as an option the DC component can be eliminated with AC coupling, or can be reduced with AC+ ( DC ) coupling. The input bandwidth can be reduced with a linear phase, 2nd order, low pass filter for low frequency applications so as to reduce the level of noise.
