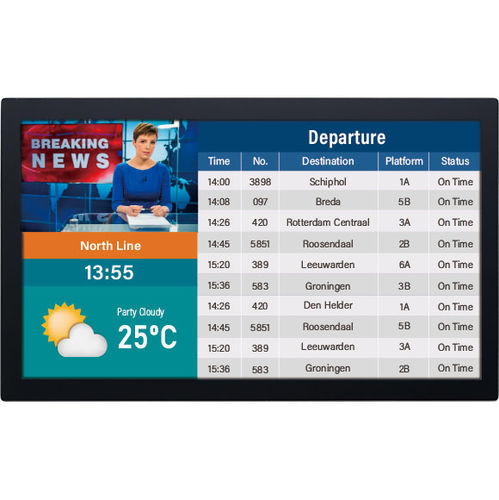

21.5" panel PC XPPC22-100
TFT LCDLED backlightPCAP touchscreen

21.5" panel PC - XPPC22-100 - NEXCOM International Co., Ltd - TFT LCD / LED backlight / PCAP touchscreen
21.5" panel PC - XPPC22-100 - NEXCOM International Co., Ltd - TFT LCD / LED backlight / PCAP touchscreen
21.5" panel PC - XPPC22-100 - NEXCOM International Co., Ltd - TFT LCD / LED backlight / PCAP touchscreen - image - 2
21.5" panel PC - XPPC22-100 - NEXCOM International Co., Ltd - TFT LCD / LED backlight / PCAP touchscreen - image - 3
21.5" panel PC - XPPC22-100 - NEXCOM International Co., Ltd - TFT LCD / LED backlight / PCAP touchscreen - image - 4
21.5" panel PC - XPPC22-100 - NEXCOM International Co., Ltd - TFT LCD / LED backlight / PCAP touchscreen - image - 5
21.5" panel PC - XPPC22-100 - NEXCOM International Co., Ltd - TFT LCD / LED backlight / PCAP touchscreen - image - 6
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, LED backlight, PCAP touchscreen, multitouch screen, widescreen
Display size
21.5"
Processor
Intel® Celeron® J3455
Resolution
1920 x 1080
Operating system
Windows 10
Construction
open frame, fanless, slim design
Mounting
VESA mounting
Applications
industrial, for IoT applications, for data acquisition systems, medical, data acquisition, point-of-care
Protection level
IP65
Other characteristics
SCADA, HMI, all-in-one, wireless, with external power adapter, real-time, multimedia

Description

- 21.5'TFT FHD 16:9 panel - 10 Points P-Cap multi-touch with slim bezel design - IP65 protection on the front - Support: VESA/panel/openframe Mount - Intel® Celeron® processor J3455, quad core, 1.50 GHz - 1 x DDR3L up to 8GB, M.2 2242 Key M for storage device - Support power input 19 VDC The 21.5" fanlesstouchscreen computer XPPC 22-100 incorporating an industrial motherboard is intended for versatile industrial applications. XPPC 22-100 has a touch screen LED backlight LCD panel with 1920 x 1080 (FHD) resolution and 250 nits brightness. The front panel which adopts flush design and compiles with IP65 standard by panel mount makes it the perfect fit in industrial applications. XPPC 22-100 powered by Intel® Celeron® processor and support DDR3L up to 8GB. XPPC 22-100 has slim design and weight optimization. XPPC 22-100 support multi-mounting choice based on different application. XPPC 22-100 can be applied in different situations. For example: hôtel self-check in System, department store, welcome board and advertisement.
