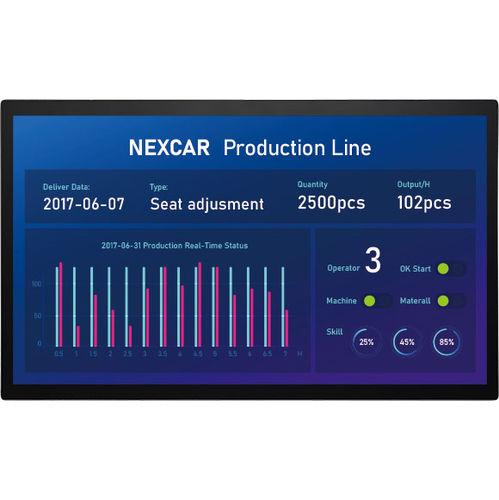

23.8" panel PC XPPC 24-100TFT LCDLED backlightPCAP capacitive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, LED backlight, PCAP capacitive touch screen, multitouch screen, widescreen
- Display size
- 23.8"
- Resolution
- 1920 x 1080
- Processor
- Intel® Celeron® J3455
- Operating system
- Linux, Windows 10
- Construction
- open frame, metal chassis, fanless, slim design
- Mounting
- VESA mounting
- Applications
- industrial, for IoT applications, for data acquisition systems, medical, data acquisition, point-of-care
- Protection level
- IP65, waterproof front panel
- Other characteristics
- HMI, all-in-one, wireless, with external power adapter, SCADA, real-time, multimedia
Description
- 23.8' TFT FHD 16:9 panel
- 10 Points P-Cap multi-touch with slim bezel design
- IP65 protection on the front
- Support: VESA/panel/openframe mount
- Intel® Celeron® processor J3455, quad core, 1.50 GHz
- 1 x DDR3L up to 8GB, M.2 M-key 2242 for storage device
- Support power input 19 VDC
The 23.8" fanless touchscreen computer XPPC 24-100 incorporating an industrial motherboard is intended for versatile industrial applications. XPPC 24-100 has a touch screen LED backlight LCD panel with 1920 x 1080 (FHD) resolution and 350 nits brightness. The front panel which adopts flush design and compiles with IP65 standard by panel mount makes it the perfect fit in industrial applications. XPPC 24-100 powered by Intel® Celeron® processor and support DDR3L up to 8GB. XPPC 24-100 has slim design and weight optimization. XPPC 24-100 support multi-mounting choice based on different application. XPPC 24-100 can be applied in different situations. For example: hôtel self-check in System, department Store, welcome board and advertisement.
