NVR server NViS 6712

rack-mount2UIntel® Core™

Overview

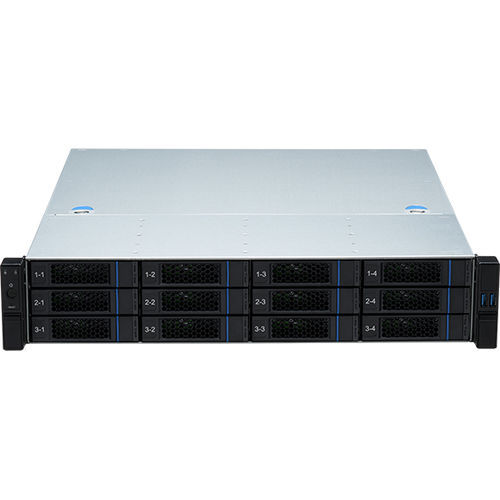

The NViS 6712 is a 2U rackmount NVR/server designed for high-density video storage and edge computing. It is built on Intel® Core™ Series 2 (LGA1700, P-core only) processors, offering up to 12 Performance-cores with Hyper-Threading for up to 24 threads. The platform balances single-core Turbo (up to 5.9 GHz), up to 36 MB L3 cache and selectable TDPs (45W / 65W / 125W). Memory and I/O are optimised for edge deployments: DDR5 support up to 64 GB at 1.1V and integrated Intel UHD Graphics 770 for multi-display outputs. A 12-bay 3.5\" HDD layout combined with NVMe/M.2 slots provides capacity and tiered storage performance.

Main features

• System: 2U rackmount chassis
• Processor: Intel® Core™ Series 2 (LGA1700, P-core only)
• Storage: 12 x 3.5\" HDD bays
• SSD: 2 x NVMe SSD slots, 1 x M.2 2242 SATA SSD
• Display outputs: DP 1.4 x1, HDMI® 2.0b x1, HDMI® 1.4 x1
• Memory: DDR5 up to 64 GB (1.1V)
• Networking: 2 x 2.5GbE Intel® Ethernet
• Audio: audio in / out and microphone support
• Expansion: PCIe x16 slot

Technical specifications

• Form factor: 2U rackmount chassis
• Processor details: Intel® Core™ Series 2 (LGA1700, P-core only), up to 12 P-cores, Hyper-Threading up to 24 threads
• Performance: Single-core Turbo up to 5.9 GHz; L3 cache up to 36 MB; supported TDPs 45W / 65W / 125W
• Memory: DDR5 up to 64 GB (operating at 1.1V for reduced power consumption)
• Graphics: Integrated Intel UHD Graphics 770; outputs: DP1.4 x1, HDMI® 2.0b x1, HDMI® 1.4 x1
• Storage: 12 x 3.5\" HDD bays; 2 x NVMe SSD slots; 1 x M.2 2242 SATA SSD
• Expansion: PCIe x16
• Networking: 2 x 2.5GbE Intel® Ethernet ports
• Audio: Audio in / out and microphone support
• Use case: High-capacity NVR/storage platform and edge AI-ready server for large-scale video storage and processing
