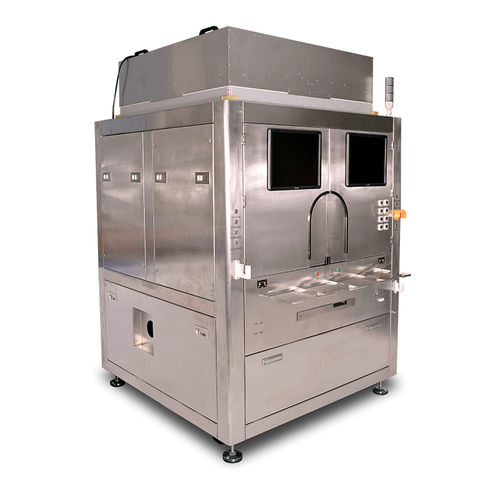

Optical alignment system AA4A-W

for cameras

FUNCTION Build-in with O/S & Electrical test Active Alignment Test : Thrufous Scan and Alignment of Lens centering, Tilt and Rotation Automated Adhesive dispensing & glue cleaning UV curing SFR/MTF Test Image quality test (light field) FEATURE Comply to Class 100 Environment High-speed motion mechanism 4 stations test in parallel Using advance 3D modeling algorithms to compensate lens distortion error Intelligent AI dispensing system, defect detection rate up to 99.9% Test Chart Support up to FOV 130° Collimator Lens compatible for FOV : 90°~ 210° Compatible with Manual or Automated Test Socket Optional of Manual or Automated DUT Load/ Unload System Great Uniformity backlight panel design Camera interface supports for MIPI-4 and USB3.0 APPLICATION Automotive Camera Module Drone Camera Module Action Camera Module AR/VR Camera Module Smart Home Camera Security Camera ToF & 3D Camera Module and Devices
