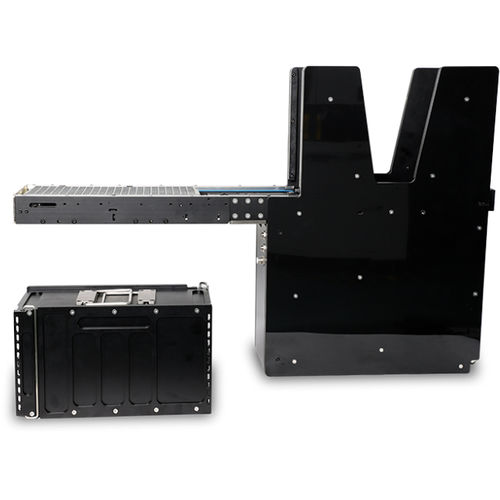

Tray feeder MGF-01A

automatedhigh-speedcompact

FUNCTION MGF-01A is a compact high-speed tray feeder specially designed for SMT machine. Design to meet JEDEC standard and requirement with high precision and repeatability positioning for both thick and thin tray. FEATURE Adopt magazine feeding mode concept design Compatible for all kind of JEDEC tray without adjustment requirement Compact structure, small footprint, occupy only 162mm width of feeding area Empty and full tray are loaded vertically to minimize the occupation of horizontal area. Achievable in less than 5s to supply a new tray on conveyor belt with 635mm distance High repeatability positioning Build in with embedded Micro-controller to enable feeder work independently Automated loading and unloading can be operated independently without require SMT machine integration APPLICATION Tray Feeding for SMT machine
