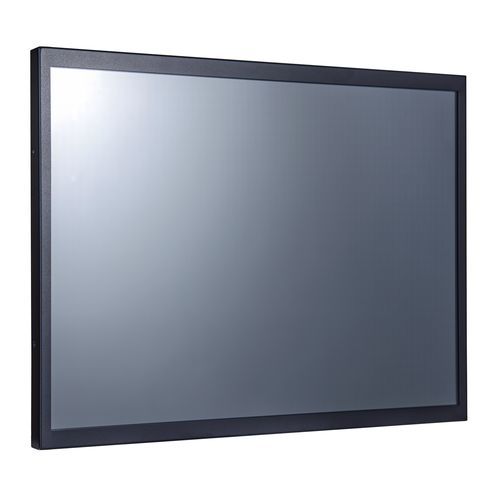

5-wire resistive touch screen monitor NTSM170-2 V50017"1280 x 1024panel-mount
Add to favorites
Compare this product
Characteristics
- Technology
- 5-wire resistive touch screen
- Display size
- 17"
- Resolution
- 1280 x 1024
- Mounting
- panel-mount
- Other characteristics
- USB, high-brightness, antibacterial
Description
★ Operating Temperature Range -30~85°C
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty
★ Capacitive Touch Options
★ Optional Software Remote Control by RS232 or DDC/CI
★ Optional 9~36VDC Power Input
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
SPEC
Panel Process - TN Mode, Normally Black
Visible Area - 337.9x270.3 mm
Aspect Ratio - 4:3
Color Depth - 16.7M Colors
Brightness (nits) - 1000/1500 nits
Contrast Ratio - 1000:1
Pixel Pitch - 0.264x0.264 mm
Response Time - 30 msec.
Viewing Angle - 80°/80°/60°/80°
min. Panel lifetime - >50000 hours
Operating Temp. - -30°~85°C
Storage Temp. - -30°~85°C
Touch Points - Single Touch
Surface Hardness - 3H
Surface TreatmentThickness - AG, Haze <15%
Transparency - 80%±5%
Accuracy - ≧98.5%
