Industrial monitor NTSM185 V500
5-wire resistive touch screen18.5"1920 x 1080

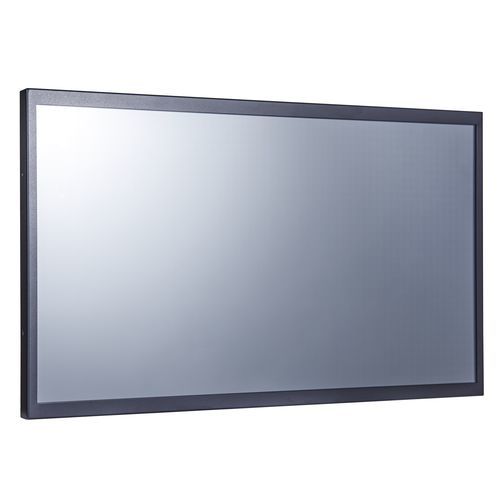

Industrial monitor - NTSM185 V500 - Nextech - 5-wire resistive touch screen / 18.5" / 1920 x 1080
Industrial monitor - NTSM185 V500 - Nextech - 5-wire resistive touch screen / 18.5" / 1920 x 1080
Industrial monitor - NTSM185 V500 - Nextech - 5-wire resistive touch screen / 18.5" / 1920 x 1080 - image - 2
Industrial monitor - NTSM185 V500 - Nextech - 5-wire resistive touch screen / 18.5" / 1920 x 1080 - image - 3
Industrial monitor - NTSM185 V500 - Nextech - 5-wire resistive touch screen / 18.5" / 1920 x 1080 - image - 4
Add to favorites
Compare this product
Go to the Nextech website for more information

Characteristics

Technology
5-wire resistive touch screen
Applications
industrial
Display size
18.5"
Resolution
1920 x 1080
Mounting
panel-mount
Other characteristics
HDMI, VGA-DVI port, high-brightness, DisplayPort, wide temperature range, antibacterial

Description

★ AHVA Wide Viewing Angle Technology , 178°/178° ★ Metal Cabinet with Diverse Combine Options ★ Made in Taiwan, 3 Years Warranty , Designed for Harsh Environments ★ Optional Software Remote Control by RS232 or DDC/CI ★ Optional 9~36VDC Power Input ★ Optional Auto Dimming Function (with Light Sensor) ★ Optional AG Coating/ Antibacterial /Privacy Filter Surface Treatment Display Specification Panel Process - AHVA Mode, Normally Black Visible Area - 408.9x230.0 mm Display Ratio - 16:9 Color Depth - 16.7M Colors Brightness (nits) - 1000 / 1500 nits (Optional) Contrast Ratio - 1000:1 Pixel Pitch - 213x213 um Response Time - 20 msec. Viewing Angle - 178°/178° Backlight Lifetime - >50000 HRS Operating Temp. - -20°~70°C Storage Temp. - -20°~70°C Touch Specification Allowed Touch Points - 1 points Interface - USB/RS232 Hardness - ≧3H Precision - 98.50% Transparency - 80%±5% Surface Treatment - Anti glare<15%
