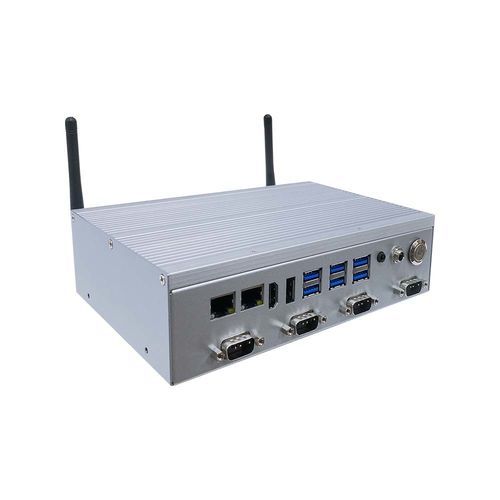

Box PC NTWB513 V100

desktopIntel® Core i3Intel® Core i5

Overview

• Intel® 13th Generation Core i Series CPU (i3 / i5 / i7 options)
• DDR4 8GB SO-DIMM (upgradeable up to 32GB)
• 128GB SSD (expandable up to 1TB)
• Dual Intel® GbE LAN ports (RJ45)
• Video outputs: HDMI ×1 and DP ×1
• Realtek Audio HAD Codec; Line-Out + MIC combo jack
• RS485 ×1, RS232 ×6 for industrial serial connectivity
• USB 3.0 ×6
• Metal cabinet, industrial design; Operating temperature 0 ~ 60℃
• Made in Taiwan; 3 years warranty

System Specifications
CPU: Intel® Core i U Series Processor (13th Gen)
Memory: DDR4 SO-DIMM, default 8GB, expandable up to 32GB
Network: 2 × Intel® GbE LAN (10/100/1000 Mbps, RJ45)
Storage: 128GB SSD default; 1 × M.2 Key-M slot (PCIe x4 / SATA, default PCIe x4, supports NVMe 2280); SATA3.0 7P connector ×1 (with 1 × SATA power wafer)
Video Output: Intel® UHD Graphics (i3); Intel® Iris Xe Graphics (i5/i7); HDMI ×1 (max 2048×1080@60Hz); DP ×1 (max 4096×2304@60Hz)
Audio: Realtek Audio HAD Codec; Line-Out + MIC combo 3.5mm jack ×1
Rear I/O: HDMI ×1; DP ×1; RJ45 ×2; USB 3.0 ×6; RS485 ×1; RS232 ×6
Operating Temp.: 0 ~ 60℃; Storage Temp.: -20 ~ 75℃
Power Input: 12V DC-in


Features (bullet summary)

• Multiple industrial I/O including six RS232 ports and RS485 for legacy equipment
• High-resolution display support via DisplayPort and HDMI
• M.2 NVMe support for high-performance, low-latency storage
• Rugged metal chassis designed for industrial environments
• Dual Intel® GbE for reliable network connectivity

Optional Accessories

• Wall mount bracket

Technical specifications

• Model family: NTWB513 V100
• CPU family: Intel® 13th Gen Core i (U series)
• Memory: DDR4 SO-DIMM, up to 32GB
• Storage options: 128GB SSD default; M.2 NVMe 2280 slot; SATA connector
• Network: Dual Intel® GbE RJ45 (10/100/1000 Mbps)
• Video outputs: HDMI (2048×1080@60Hz), DP (4096×2304@60Hz)
• Audio: Realtek Audio HAD Codec; Line-Out + MIC combo jack
• Serial: RS485 ×1; RS232 ×6
• USB: USB 3.0 ×6
• Operating temperature: 0 ~ 60℃; Storage temperature: -20 ~ 75℃
• Power input: 12V DC
• Chassis: Metal cabinet
• Product origin: Taiwan
• Warranty: 3 years
