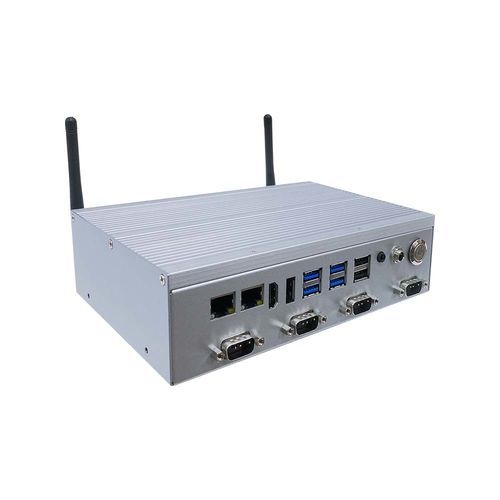

EDGE PC NTWB512 V100E

embeddedIntel® Processor N97RS-232

Product Overview
The Nextech NTWB512V100E industrial PC integrates an Intel Alder Lake N97 processor with Intel UHD Graphics in a metal chassis, designed for control, HMI and edge computing in industrial environments. It provides multiple I/O, dual Gigabit Ethernet and expandable storage for secure, long-term deployments.

Features

• Intel® Alder Lake N97 CPU
• 8GB DDR4 SO‑DIMM (upgradable to 16GB)
• Dual GbE LAN ports (Intel i210‑AT + Intel i226‑V)
• Standard 128GB SSD, expandable up to 1TB (M.2 2280, NVMe/SATA)
• HDMI x1 and DisplayPort (DP) x1 outputs
• Realtek Audio HAD Codec
• 1 x RS485 and 6 x RS232 serial ports
• USB 3.0 x4, USB 2.0 x2
• Metal cabinet; operating temp 0~60°C
• Made in Taiwan; 3 years warranty

System Specifications
CPU: Intel® Alder Lake‑N97 Processor
Memory: DDR4 SO‑DIMM 8GB, up to 16GB
Network: Intel i210‑AT GbE x1; Intel i226‑V GbE x1
Storage: M.2 M‑Key 2280 (PCIe x1 / SATA), NVMe/SATA SSD support, auto‑detect SATA3.0 6Gbps; default 128GB SSD, expandable to 1TB
Video Output: Intel® UHD Graphics — HDMI x1 (max 4096x2160@30Hz); DP x1 (max 4096x2160@60Hz)
Audio: Realtek Audio HAD Codec; Line‑Out + MIC 2‑in‑1 jack
Rear I/O: HDMI x1; DP x1; RJ45 x2; USB3.0 x4; USB2.0 x2; RS485 x1; RS232 x6; Line‑Out/MIC jack x1
Power Input: 12V DC
Operating/Storage Temp: 0~60°C / -20~75°C

Optional Accessories

• Wall mount bracket

Technical Specifications

• Model: NTWB512V100E
• Processor: Intel Alder Lake N97
• Graphics: Intel® UHD Graphics (HDMI & DP)
• Memory: 8GB DDR4 SO‑DIMM (upgradable to 16GB)
• Storage: M.2 2280 (PCIe x1/SATA), NVMe/SATA, default 128GB SSD, up to 1TB
• LAN: Dual GbE (Intel i210‑AT, Intel i226‑V)
• USB: 4 x USB 3.0, 2 x USB 2.0
• Serial: 1 x RS485, 6 x RS232
• Audio: Realtek Audio HAD Codec
• Video Resolutions: HDMI up to 4096x2160@30Hz; DP up to 4096x2160@60Hz
• Chassis: Metal cabinet
• Temps & Power: Operating 0~60°C; Storage -20~75°C; 12V DC input
• Origin & Warranty: Made in Taiwan; 3 years warranty
