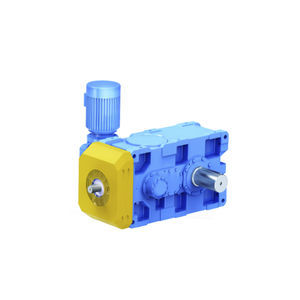

Gear train gearbox MHB series
right angleparallel-shaft> 10 kNm

gear train gearbox
gear train gearbox
gear train gearbox
Add to favorites
Compare this product


Characteristics

Type
gear train
Shaft orientation
right angle, parallel-shaft
Torque
> 10 kNm
Applications
transmission, for machinery, for industrial applications, for mining applications, for mining equipment, for the chemical industry, for the paper industry, for food industry machinery, conveyor, for ball mills, for agitators, building, for cranes, for heavy-duty applications, for roller mills, for paper machines, uncoiler, for the petrochemical industry, for lifting applications, for bucket elevators
Other characteristics
modular, industrial, powder

Description

Conveyor Gearboxes Standard gearbox series are applicable to various mechanical power transmission fields. Products of this series include gearboxes with helical gears and helical-bevel gears, which possess different types and designs and multiple installation methods to meet requirements of all kinds of industrial fields. Characteristics Modular design with good component interchangeability Reasonable torque range distribution and affordable Improved bearing capacity and noise reduction performance through tooth flank modification Hardened tooth surface design with accuracy above grade 5 Various sealing forms to meet sealing requirement of different application fields Short lead time and reliable quality Main Technical Parameters Specification: 25 types Torque Range: 2 –1,400kN.m Speed Ratio: 1.25–450 Applications Belt conveyor, bucket conveyor, blender, lifting equipment, travel-ling machine, paper making machine, drying machine, rotary kiln, powder concentrator, stretch roll and etc.
