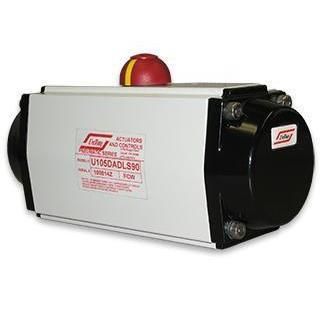

Pneumatic actuator M series

rotaryrack-and-piniondouble-acting

Overview
UniTorq M-Series pneumatic rotary actuators provide modular, serviceable quarter-turn actuation for valves and dampers. Designed for consistent torque delivery, the M-Series supports double-acting and spring-return configurations with a standardized 100° travel and field-adjustable stops.

Features

• Improved travel stop — actuator stops off the pinion rather than the pistons; standard 100° travel with +5°/−5° adjustment; forged steel stop can be machined to custom travel lengths.
• 'Top Hat' thrust bearing design — large pinion bearing surface reduces friction, absorbs side loads and extends pinion seal life.
• Increased tooth engagement — minimum two teeth engaged throughout stroke for predictable torque output and accurate positioning.

Coating Options

• Anodized Type II
• Hard Anodized Type III
• Anodized Type II plus epoxy polyester powder coat
• ANI (high phosphorus nickel impregnated)
• Anodized Type II or III with PTFE seal

Available Options

• Rotation: 120°, 135°, 180° in double-acting and spring-return variants
• Low- and high-temperature materials and seals
• Fast-acting / quick exhaust configurations
• 100% travel stop adjustment
• 3-position actuators

Mounting Options

• 3.25 in and 5 in bolt circles; Double D and keyway pinions available for direct valve automation

Torque Charts
Double acting torque (in-lbs) and spring return torque (in-lbs). Sample values:
M10 | 57, 85, 113, 141, 170
M20 | 96, 143, 191, 239, 287 | Spring K22: 42, 29, 67, 53, 115
M34 | 170, 255, 340, 425, 510 | Spring K22: 71, 46, 122, 97, 206
M48 | 241, 361, 482, 602, 723 | Spring K22: 99, 71, 167, 140, 287
M75 | 369, 553, 738, 922, 1107 | Spring K22: 157, 106, 259, 208, 441
M105 | 544, 816, 1088, 1360, 1632 | Spring K22: 234, 157, 381, 304, 650
M157 | 787, 1181, 1574, 1968, 2361 | Spring K22: 335, 213, 566, 444, 956
Refer to the official brochure or engineering documentation for the complete torque table and additional models and K-fits.

Documentation
UniTorq supplies an M-Series pneumatic actuator brochure (PDF) and engineering documents including sizing tools, installation and maintenance guidance.

Technical specifications

• Brand: UniTorq
• Denomination: M-Series actuator family
• Actuation types: Double acting and spring return
• Standard travel: 100° with +5° / −5° stop adjustment; forged steel travel stop machineable
• Rotation options: 120°, 135°, 180°
• Thrust bearing: 'Top Hat' design for increased pinion bearing surface
• Tooth engagement: Minimum two teeth engaged at all times
• Coating options: Type II, Type III, Type II + powder coat, ANI, PTFE sealed options
• Mounting: 3.25 in and 5 in bolt circles; Double D and keyway pinions
• Temperature options: Low and high temperature variants
• Other options: Fast acting / quick exhaust, 100% travel stop adjustment, 3-position models
