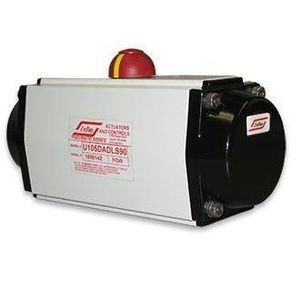

Pneumatic valve actuator A series

rotarydouble-actingsingle-acting with return spring

Overview

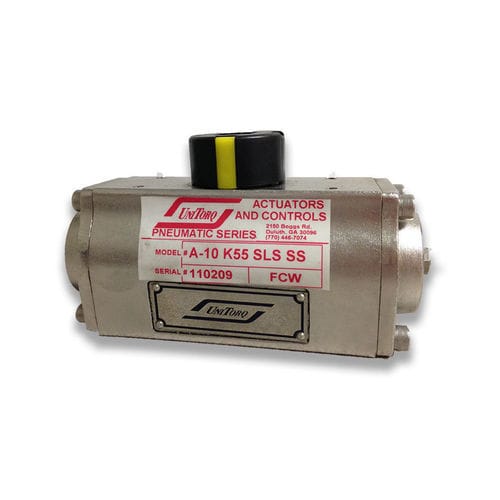

UniTorq A-Series pneumatic actuators are designed for demanding industrial applications. The actuators feature a cast 304 or 316 stainless steel body and are available in multiple sizes (A10, A30, A73, A148, A295, A470, A586, A1213). Configurations include double-acting and spring-return variants. Stainless steel solenoid valves are offered to complete solutions for corrosive environments.

Applications / Environments

• Chemical processing and manufacturing
• Coastal and marine installations
• Food & beverage production
• Pharmaceutical manufacturing and facilities handling caustic materials

Performance and torque data
Double-acting torque values are shown at supply pressures of 40, 60, 80, 100 and 120 PSI. Spring-return torque values are available with multiple spring settings.

• A10 — Double acting torque (in-lbs) at 40 / 60 / 80 / 100 / 120 PSI: 74 / 111 / 148 / 184 / 221; Spring-return torques (various springs): 3, 49, 31, 25, 43, 62, 80, 99, 117, 135, 154, 172, 190
• A30 — 173 / 260 / 347 / 434 / 520; Spring-return: 3, 111, 73, 63, 101, 149, 188, 236, 274, 323, 361, 409, 448
• A73 — 376 / 564 / 752 / 940 / 1128; Spring-return: 3, 246, 168, 130, 208, 318, 396, 506, 584, 694, 772, 883, 961
• A148 — 803 / 1204 / 1605 / 2007 / 2408; Spring-return: 3, 523, 336, 280, 467, 681, 868, 1083, 1269, 1484, 1671, 1885, 2072
• A295 — 1252 / 1878 / 2504 / 3130 / 3756; Spring-return: 3, 833, 556, 420, 696, 1046, 1322, 1672, 1948, 2298, 2574, 2924, 3200
• A470 — 2140 / 3211 / 4281 / 5351 / 6421; Spring-return: 3, 1370, 911, 771, 1230, 1841, 2300, 2911, 3370, 3981, 4440, 5051, 5510
• A586 — 3262 / 4892 / 6523 / 8154 / 9785; Spring-return: 3, 2213, 1483, 1049, 1778, 2680, 3409, 4310, 5040, 5941, 6671, 7572, 8301
• A1213 — 6422 / 9633 / 12844 / 16056 / 19267; Spring-return: 3, 3819, 2767, 2603, 3655, 5814, 6866, 9025, 10078, 12236, 13289, 15447, 16500

Options

• Stainless steel solenoid valves for severe/corrosive environments
• Multiple spring settings (K#) for spring-return models to match start/end torque requirements
• Model selection across sizes to meet torque and pressure specifications

Documentation

• UniTorq A-Series (Stainless Steel) (PDF)
• Refer to the site's Engineering Documents section for additional engineering literature and detailed specifications
