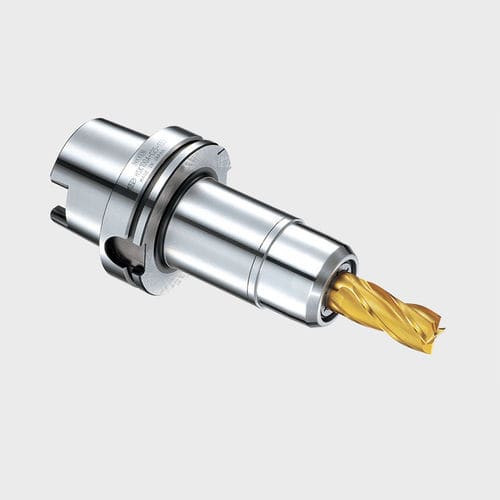

Collet tool holder C series
for machiningsteelcutting

collet tool holder
collet tool holder
collet tool holder
Add to favorites
Compare this product


Characteristics

Clamping method
collet
Application
for machining
Other characteristics
steel, cutting
Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 40,000 rpm
(251,327 rad.min-1)

Description

NIKKEN's Multi-Lock is the ultimate ‘mechanical roller chuck’! The construction consists of two parts – a single piece special heat and 'sub-zero' treated main body and spindle shank connection, with a precise slotted bore, which becomes one with a seperately manufactured external nose ring assembly. Within the nose ring assembly is encased a steel guide cage containing hundreds of precise hardened and coated steel rollers along with a series of snap rings, seals and spacers - Complex but powerful once everything is combined! Operation is very simple but extremely effective. The cutting tool and reducing collet, if required, are loaded into the main bore of the chuck after which the nose ring is rotated in a clockwise motion. Normally starting by hand, and then continuing with the appropriate wrench, this rotation results in the nose ring ‘climbing up’ an extremely shallow external taper on the main body. The resulting elastic deformation collapses the main slotted bore around the tool shank gipping it for its entire length. Rotation of the ring and clamping is completed when the rear face of the nose ring contacts the front face of the holder body. The cutting tool is retained simply by the resulting increase of force and friction being applied to the tool shank as the slotted bore became compressed. The clamping power of NIKKEN Multi-Lock's is unbeatable and is at least 3-4 times that of other comparable products on the market! Absolute and precise gripping force!
