LED micrometer M series

opticaldepththickness

Product overview

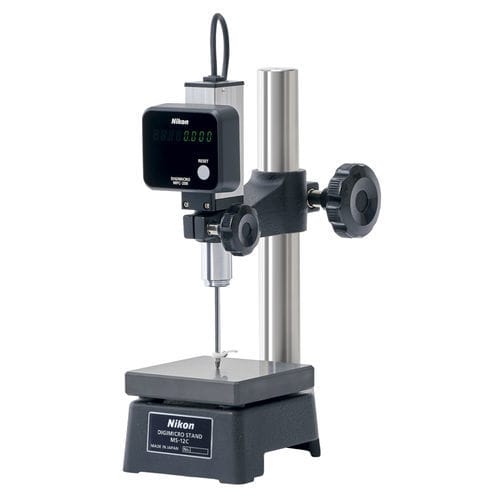

The DIGIMICRO series is a contact-type digital length measuring system using a built-in photoelectric linear scale. It enables thickness, depth and step-height measurement with high selectable resolution and a modular set of plunger heads, counters and stands to adapt to laboratory and production inspection tasks.

Models & Counters

• MF-1001 digital plunger head — 0–100 mm measuring range
• MF-501 digital plunger head — 0–50 mm measuring range
• MH-15M digital plunger head — 0–15 mm measuring range
• Counters: MFC-200 (minimum readable value 0.1 µm, switchable settings) and TC-200 (minimum readable value 0.01 µm, configurable scales)

Key highlights

• Selectable display resolution down to 0.01 µm depending on counter and settings
• Accuracy specified at 20 °C varies by model and counter (see technical specifications)
• High response speed up to 500 mm/s for MF-1001/MF-501; MH-15M limited to 100 mm/s
• Integrated high-precision Nikon linear encoder and protective anti-dust bellows on the probe shaft

Accessories

• Probe tip options: standard, pin, plastic, off-centre, flat and roller (6 types)
• Bench stands: MS-12C, MS-22S, MS-32G, MS-51C and MS-41G
• Optional accessories: LED illumination unit, calibration mirrors, carrying case, AC adapter or battery power options

Applications

• Contact measurement of thickness, depth and step height in laboratory and production quality control
• Precision inspection of small mechanical parts, electronic components and assembly processes

Technical specifications (summary)

• Measurement ranges: MF-1001 0–100 mm; MF-501 0–50 mm; MH-15M 0–15 mm
• Minimum readable value: MF-1001 + MFC-200 0.1 µm (switchable to 0.5 µm or 1 µm); MF-1001 + TC-200 0.01 µm (switchable to 0.05 µm, 0.1 µm, 1 µm or 5 µm); MF-501 similar; MH-15M + TC-200 0.01 µm
• Accuracy (at 20 °C): MF-1001 ≈ 3 µm; MF-501 ≈ 1 µm; MH-15M + TC-200 ≈ 0.7 µm
• Response speed: up to 500 mm/s (MF-1001 / MF-501); MH-15M 100 mm/s or less
• Measuring force (typical): MF-1001 downward 1.225–1.813 N (variable to ≈0.441 N), lateral 0.637–1.225 N; MF-501 downward 1.127–1.617 N (variable to ≈0.294 N), lateral 0.637–1.225 N; MH-15M upward 0.245 N, downward 0.637 N, lateral 0.441 N (with lifting release)
• Operating temperature: 0 to +40 °C
• Weight (main unit approx.): MF-1001 ≈ 480 g; MF-501 ≈ 310 g; MH-15M ≈ 220 g
