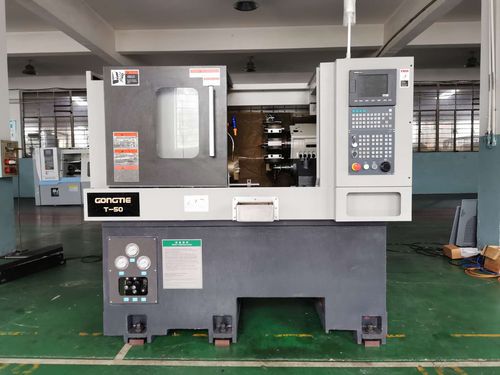

Heavy-duty machining lathe T50
CNChorizontal2-axis

Heavy-duty machining lathe - T50 - Ningbo gongtie smart technology co., ltd. - CNC / horizontal / 2-axis
Heavy-duty machining lathe - T50 - Ningbo gongtie smart technology co., ltd. - CNC / horizontal / 2-axis
Heavy-duty machining lathe - T50 - Ningbo gongtie smart technology co., ltd. - CNC / horizontal / 2-axis - image - 2
Heavy-duty machining lathe - T50 - Ningbo gongtie smart technology co., ltd. - CNC / horizontal / 2-axis - image - 3
Heavy-duty machining lathe - T50 - Ningbo gongtie smart technology co., ltd. - CNC / horizontal / 2-axis - image - 4
Heavy-duty machining lathe - T50 - Ningbo gongtie smart technology co., ltd. - CNC / horizontal / 2-axis - image - 5
Heavy-duty machining lathe - T50 - Ningbo gongtie smart technology co., ltd. - CNC / horizontal / 2-axis - image - 6
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Structure
slant bed, universal
Applications
for heavy-duty machining, for metal
Other characteristics
compact
Diameter

Max.: 300 mm
(11.81 in)

Min.: 0 mm
(0 in)

Spindle speed

Max.: 4,500 rpm
(28,274.334 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

1. 30 degree slant bed compact casting with integral structure provides superior rigidity; guarantee the machine’s turning lift time, accuracy and stability 2. Handpicking famous brand components, taking hard rail as the X axis guide way, and heavy roller as Z axis guide way, to perfect meet the requirement of heavy cutting 3. head stock taking ITALY synchronism motor spindle with 11.5KW, to realize the heavy cutting, high speed and perfect product finish。 main parameter unit T50 Max. swing dia. mm Φ520 Max. turning dia. mm Φ300 Max. turning length mm 435 X axis stroke mm 170 Z axis stroke mm 465 spindle nose A2-6 collet size 36 Chuck size INCH 8 Bore of spindle mm Φ62 Max. bar through dia. mm Φ52 Spindle speed r/min 0-4500 Height from floor to spindle center mm ≈ 1120
