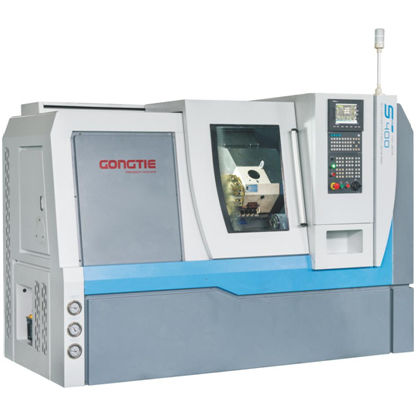

CNC lathe SZ series

horizontalfor heavy-duty machininghigh-precision

An UNIVERSAL cnc lathe which has the characteristics of heavy cutting ,high rigidity and high cost performance. It can be equipped with gang tool , 4+4 live tools with Y axis and turret. The cnc lathe can be a single processing machine ,also can achieve the automatic batch making together with the gantry loader or bar feeder. Heavy cutting High rigidity High stability  - 30 degree slant bed lathe with integrated casting structure to ensure its rigidity, assuring the processing life,precision and stability.  - Feeding axis has a pre stretching structure and enclosed inner protection，which can better restrict the thermal transfer of the transmission mechanism to ensure the lathe’s stability and processing accuracy. Adopt PMI ball screw and linear guideway made in TAIWAN. Compound with Turning & milling function, mounted with Y-axial live tool and servo turret Main Technical Parameters Max swing diameter Φ500mm Max cutting length 400mm Max X-axis stroke 860mm Max Z-axis stroke 435mm Spindle nose size A2-5 Max bar- trough diameter Φ45mm Servo spindle power 7.5kw Turret 10 positions Total equipped power 15KW Overall size (L*W*H) 2300*1700*2400mm Net weight ≈3700KG
